2015 Case SV250 Earth Moving and Construction

$28,500 USD
Contact Information
CONTACT :
Matt Alexander
PHONE :
FAX :
Stock #:
10073
YEAR:
2015
Manufacturer:
MODEL #:
CONDITION:
Used
HOUR METER:
1231
LOCATION:
Equipment Description:

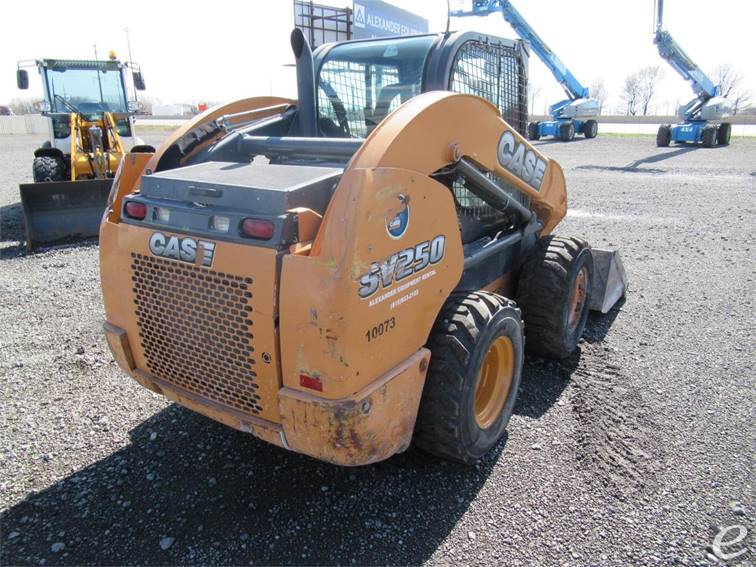

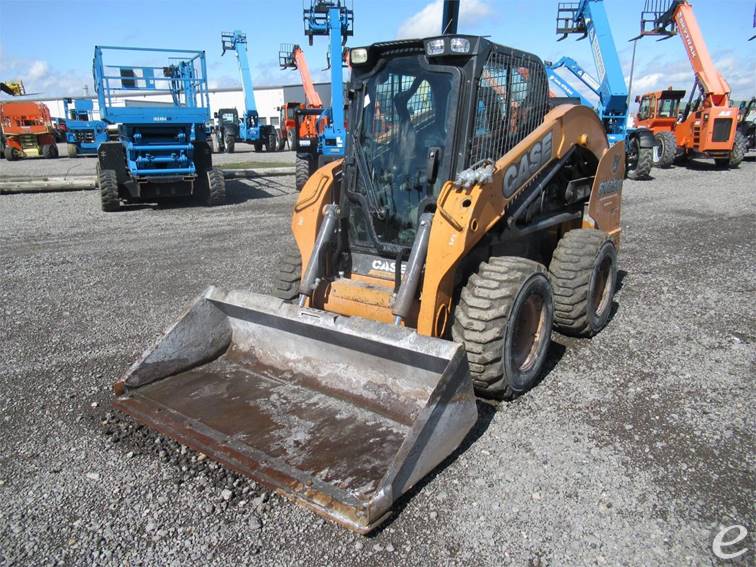

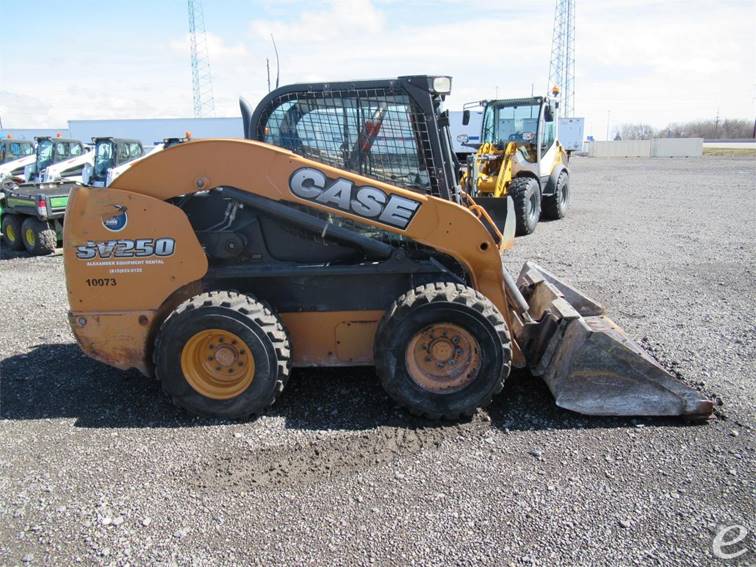

This Case SV250 skid steer loader is for sale. Features include: enclosed cab, heat, ac, general purpose bucket, 2500 lb operating capacity, and diesel power. Like every used Case skid steer for sale at Alexander Equipment, this one has been safety inspected.
  • Engine
    • Model: FPT F5H FL463 B
    • Type: Turbocharged, 4-cylinder, diesel engine
    • Displacement: 3.2 liters
    • Gross Horsepower: 84 hp (63 kW)
    • Net Horsepower: 82 hp (61 kW)
    • Peak Torque: 252 lb-ft (341 Nm)
    • Fuel Capacity: 25.5 gallons (96.5 liters)
  • Performance
    • Rated Operating Capacity: 2,500 lbs (1,134 kg)
    • Tipping Load: 5,000 lbs (2,268 kg)
    • Bucket Breakout Force: 8,776 lbs (3,981 kg)
    • Lift Arm Breakout Force: 5,764 lbs (2,615 kg)
    • Maximum Travel Speed: 11.9 mph (19.1 km/h)
    • High-Flow Hydraulics: 37.6 gpm (142.4 L/min)
  • Dimensions
    • Overall Operating Height: 166.7 inches (4,235 mm)
    • Height to Hinge Pin: 128.0 inches (3,251 mm)
    • Overall Length without Attachment: 117.3 inches (2,980 mm)
    • Overall Length with Bucket: 142.7 inches (3,625 mm)
    • Overall Width: 69.6 inches (1,768 mm)
    • Track Width: 12.6 inches (320 mm)
    • Ground Clearance: 8.1 inches (206 mm)
  • Weight
    • Operating Weight: 7,400 lbs (3,357 kg)
    • Shipping Weight: 7,040 lbs (3,193 kg)
  • Hydraulic System
    • Standard Flow: 24.2 gpm (91.5 L/min)
    • Optional High Flow: 37.6 gpm (142.4 L/min)
    • Hydraulic Pressure: 3,335 psi (230 bar)
  • Tires
    • Tire Size: 12 x 16.5, 12-ply
  • Electrical
    • Battery: 12-volt
    • Alternator: 95 amps
