2022 Electric Big Joe CB33-126 Electric Walkie Counterbalanced Stacker

$23,285 USDNew
Contact Information
CONTACT :
Equipment Sales
PHONE :
FAX :
Stock #:
YEAR:
2022
Manufacturer:
MODEL #:
CAPACITY:
3300
FUEL:
Electric
MAST TYPE:
Two Stage Full Free
MAST HEIGHT:
83 / 126 in
SIDE SHIFTER:
No
CONDITION:
New
LOCATION:
DESCRIPTION:
SALE PRICE INCLUDES DELIVERY FOR CONTIGUOUS USA*
Equipment Description:

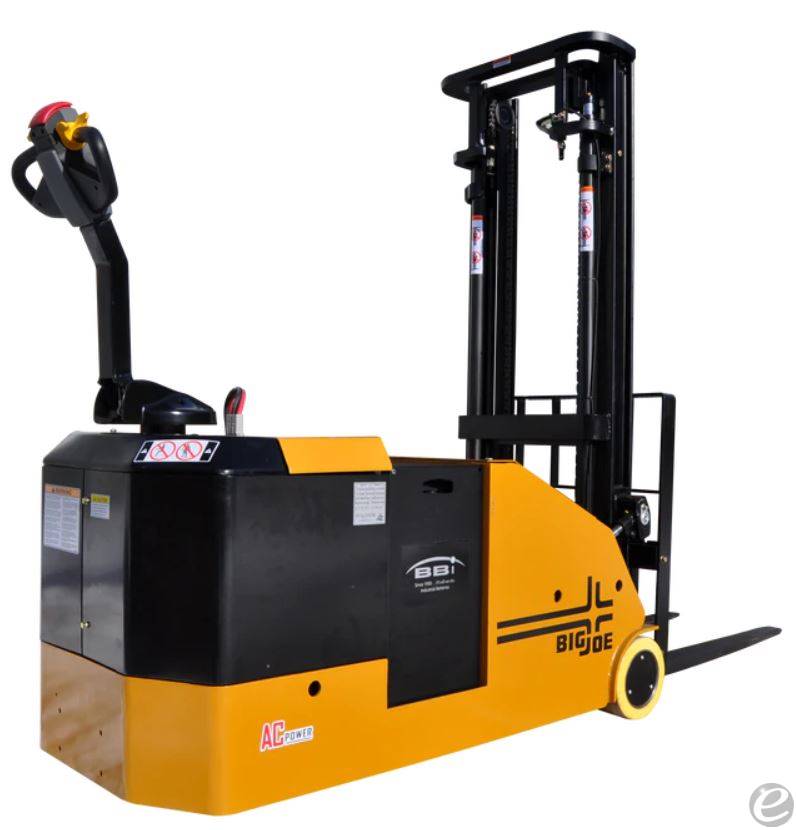

The Big Joe CB33 Counterbalance Pallet Stacker is a powered drive and powered lift pallet stacker with adjustable forks allowing it to handle virtually any type of pallet or skid. It is perfect for loading and unloading trucks, pallet stacking, positioning loads, and is an excellent value priced alternative to a traditonal sit-down forklift. It is also available in 104" and 157" Lift Heights. Includes Battery & Charger. 24 Month / 1,000 Hour Limited Warranty. *SALE PRICE INCLUDES DELIVERY FOR CONTIGUOUS USA, excluding California. Call Elite Material Handling TODAY at (281) 895-5438 or visit our website at www.elitemh.com to see our full line of services… chances are we can help! Pricing current as of 07/15/2022.

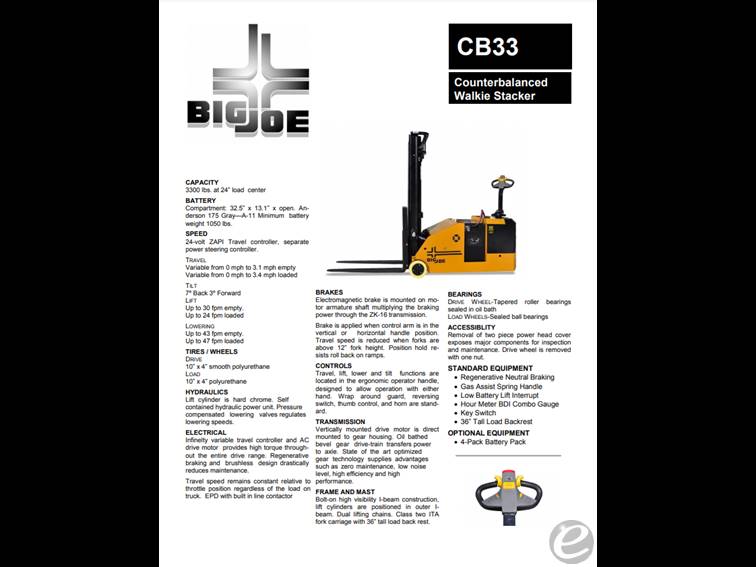

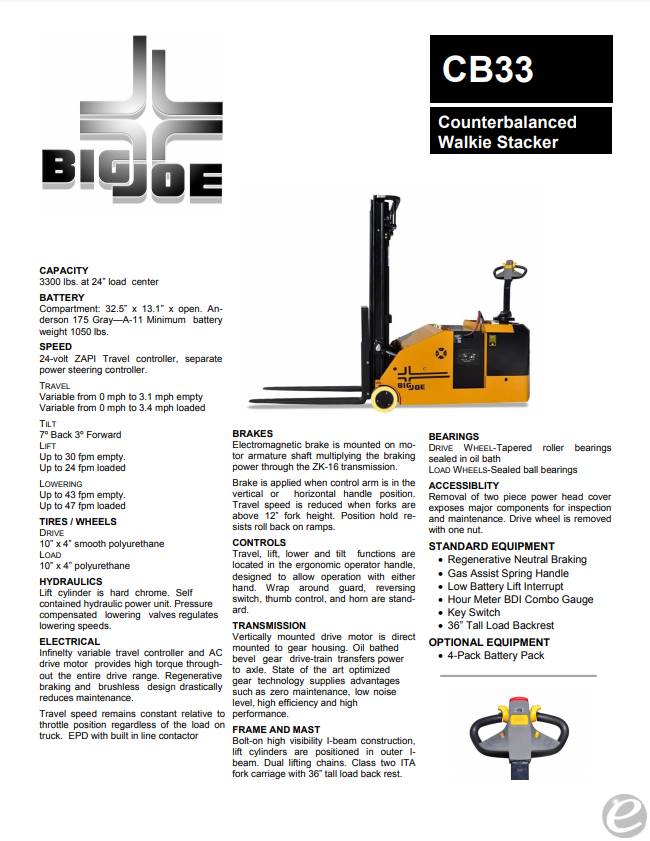

  • General Information
    • Model: Big Joe CB33-126
    • Type: Counterbalanced Stacker
  • Performance
    • Load Capacity: 3,300 lbs
    • Lifting Height: 126 inches
    • Drive System: Electric
    • Power Supply: 24 Volt

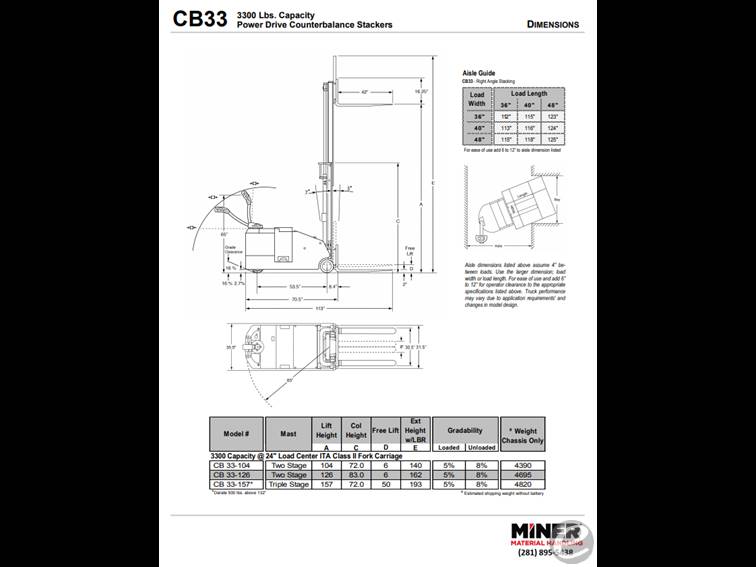

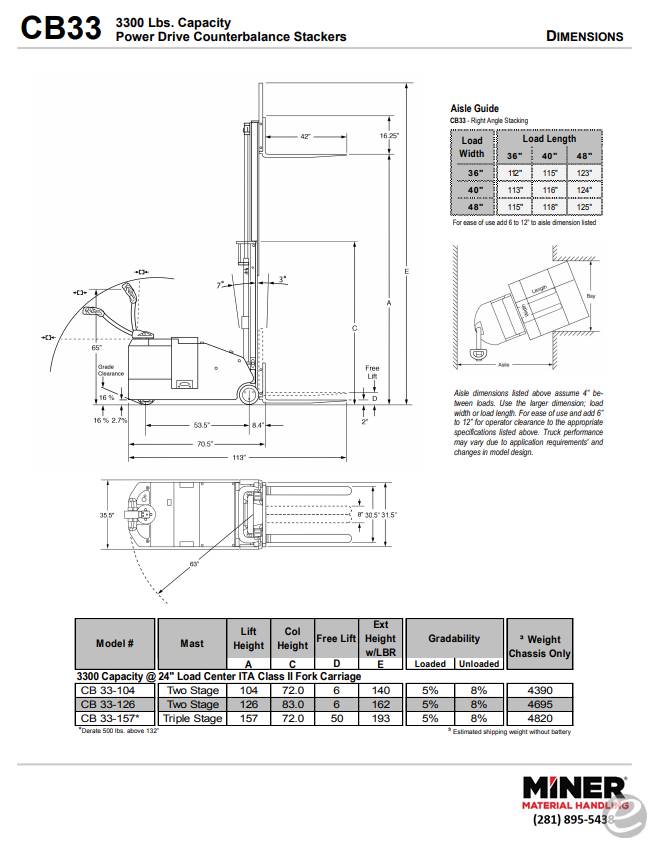

  • Dimensions
    • Overall Length: 76 inches
    • Overall Width: 32 inches
    • Overall Height: 85 inches at maximum lift
    • Fork Length: 42 inches
    • Fork Width: 3 inches
    • Fork Height (Lowered): 2.5 inches
  • Safety Features
    • Automatic Brake System
    • Emergency Stop Button
    • Operator Presence Sensor
  • Operational Features
    • Control: Fingertip control handle
    • Turning Radius: 61 inches
    • Travel Speed: 3.5 miles per hour
  • Battery and Charger
    • Battery Type: Industrial lead-acid
    • Battery Capacity: Typically 230 Ah
    • Charger Type: External
  • Options and Accessories
    • Wide View Mast Option
    • Adjustable Forks
    • Side Shifter
