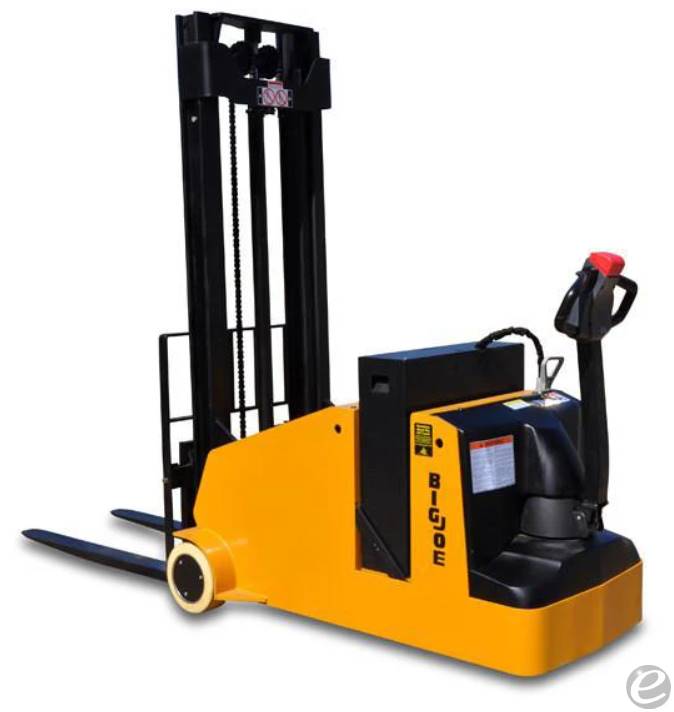

2022 Electric Big Joe CB22-128 Electric Walkie Counterbalanced Stacker

$18,065 USDNew
Contact Information
CONTACT :
Equipment Sales
PHONE :
FAX :
Stock #:
YEAR:
2022
Manufacturer:
MODEL #:
CAPACITY:
2200
FUEL:
Electric
MAST TYPE:
Two Stage Full Free
MAST HEIGHT:
83 / 128 in
SIDE SHIFTER:
No
CONDITION:
New
LOCATION:
DESCRIPTION:
SALE PRICE INCLUDES DELIVERY FOR CONTIGUOUS USA*
Equipment Description:
The Big Joe CB22 Counterbalance Pallet Stacker is a powered drive and powered lift pallet stacker with adjustable forks allowing it to handle virtually any type of pallet or skid. It is perfect for loading and unloading trucks, pallet stacking, positioning loads, and is an excellent value priced alternative to a traditonal sit-down forklift. It is also available in 104" and 157" Lift Heights. Includes Battery & Charger. 24 Month / 1,000 Hour Limited Warranty. *SALE PRICE INCLUDES DELIVERY FOR CONTIGUOUS USA, excluding California. Call Elite Material Handling TODAY at (281) 895-5438 or visit our website at www.elitemh.com to see our full line of services… chances are we can help! Pricing current as of 07/15/2022.
  • Model: Big Joe CB22-128
  • Load Capacity: 2,200 lbs
  • Lift Height: 128 inches
  • Collapsed Mast Height: 85 inches
  • Battery Specifications:
    • 24V DC system
    • Industrial batteries: 255 Ah standard
  • Charger:
    • Built-in 120V AC, 30A charger
  • Drive System:
    • AC drive motor
    • Semi-traction capacity for enhanced maneuverability
  • Controller:
    • Advanced control system for precision operation
    • Multiple performance modes available
  • Tilt:
    • Tilt function capability for enhanced load handling
  • Fork Specifications:
    • Adjustable fork width
    • Standard fork length: 42 inches
  • Operation:
    • Stand-up rider operation
    • Ergonomic operator compartment
  • Wheels:
    • Polyurethane drive tires for durable operation
    • Dual load wheels for improved stability
  • Overall Dimensions:
    • Overall width: 42 inches
    • Overall length: 87 inches (including forks)
  • Weight: Approximately 3,200 lbs (without load)
  • Safety Features:
    • Integrated safety features including operator presence sensor
    • Emergency power disconnect
    • High visibility mast for better operator awareness
  • Optional Accessories:
    • Side-shifter
    • Additional fork lengths
    • Cold storage conditioning
