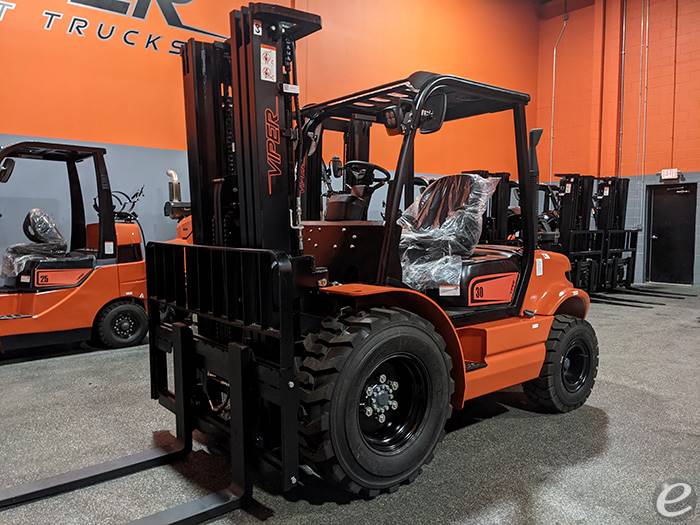

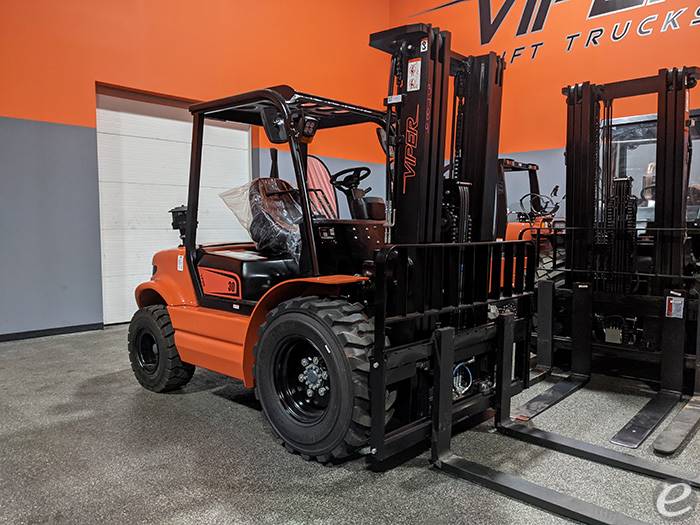

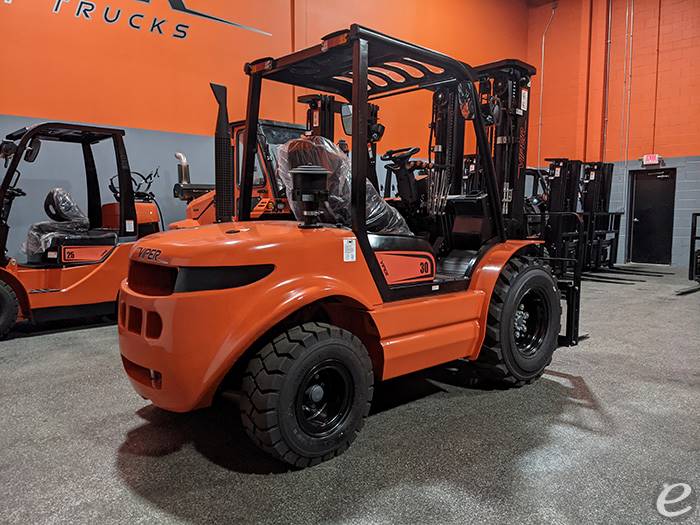

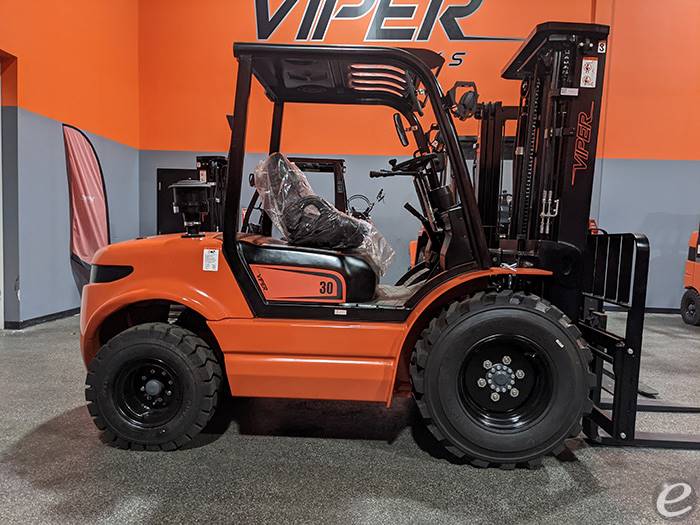

2024 Diesel Viper Lift Trucks RTD30 Pneumatic Tire 4 Wheel Sit Down

Call for priceNew
Contact Information
Illinois Lift Equipment
640 Industrial Dr
Cary, Illinois 60013
CONTACT :
John Hellyer
PHONE :
Stock #:
YEAR:
2024
Manufacturer:
MODEL #:
CAPACITY:
6000
FUEL:
Diesel
MAST TYPE:
Three Stage
MAST HEIGHT:
92 / 189 in
SIDE SHIFTER:
Yes
CONDITION:
New
LOCATION:
DESCRIPTION:
3 STAGE MAST, DIESEL FUEL, 6000LB CAPACITY
Equipment Description:

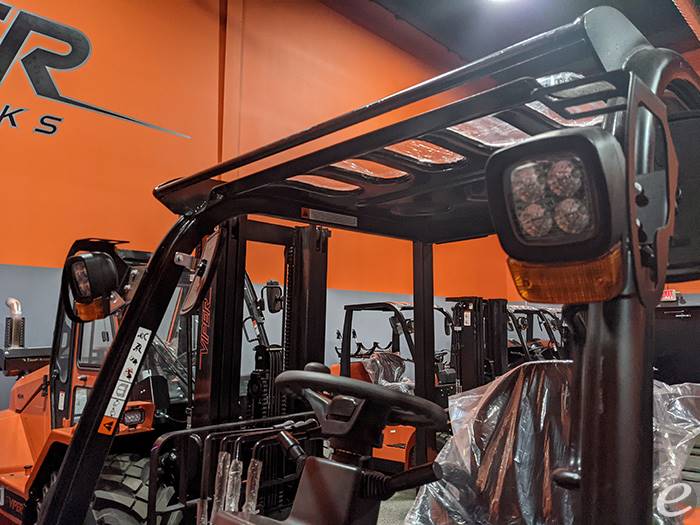

6000LB CAPACITY 3 STAGE MAST 92" LOWERED 189" RAISED DIESEL FUEL AIR PNEUMATIC TIRES LED LIGHT PACKAGE BACKUP ALARM, LIGHTS AND TURN SIGNALS PRE AIR CLEANER SIDE SHIFTER 48" FORKS 12 MO / 2000 HOUR WARRANTY EXTENDED WARRANTIES AVAILABLE SERVICEABLE BY ANY DEALER IN THE UNITED STATES EXTENDED WARRANTIES AVAILABLE - PLEASE VISIT OUR WEBSITE AT WWW.ILLINOISLIFT.COM FOR MORE INVENTORY OR CONTACT JOHN HELLYER AT 630-417-0788 FOR MORE INFORMATION.
  • Engine Specifications
    • Engine Type: Diesel
    • Brand: Kubota
    • Model: V2403
    • Power Output: 49.2 HP
    • Displacement: 2.4 L
    • Number of Cylinders: 4
  • Performance
    • Load Capacity: 3,000 kg (6,600 lbs)
    • Max Lift Height: 4,500 mm (177 inches)
    • Travel Speed (Unloaded): 20 km/h (12.4 mph)
    • Lift Speed (Loaded): 600 mm/s (23.6 inches/s)
    • Hydraulic System Pressure: 17.5 MPa
  • Dimensions
    • Overall Length: 2700 mm (106.3 inches)
    • Overall Width: 1230 mm (48.4 inches)
    • Overall Height (Overhead Guard): 2220 mm (87.4 inches)
    • Wheelbase: 1700 mm (66.9 inches)
    • Ground Clearance: 150 mm (5.9 inches)
  • Steering and Tires
    • Steering Type: Hydraulic Power Steering
    • Tire Type: Pneumatic
    • Front Tire Size: 27x10-12
    • Rear Tire Size: 27x10-12
  • Mast and Forks
    • Mast Type: Duplex
    • Mast Tilt (Fwd/Bwd): 6°/12°
    • Fork Length: 1220 mm (48 inches)
    • Fork Width: 122 mm (4.8 inches)
    • Fork Thickness: 45 mm (1.8 inches)
  • Weight and Capacities
    • Service Weight: 4500 kg (9920 lbs)
    • Fuel Tank Capacity: 65 L (17.2 gallons)
    • Hydraulic Oil Capacity: 60 L (15.9 gallons)
    • Cooling System Capacity: 12.5 L (3.3 gallons)
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.
