Equipment Description:

UNIT INCLUDES: AUTO CENTERING DRIVE TIRE, CUSHIONED MAST REACH CYLINDERS, GUARDIAN STABILITY SYSTEM, ELECTRONIC DISPLAY, ERGONOMIC CONTROL HANDLE, EMERGENCY STOP SWITCH, SWITCH PANEL, ADJUSTABLE PADDED ARMREST, THICK, PADDED FLOOR MAT, EASILY REMOVABLE COVER PANELS, HEAVY DUTY TRANSAXLE, VULKOLLAN TIRE & LOAD WHEELS

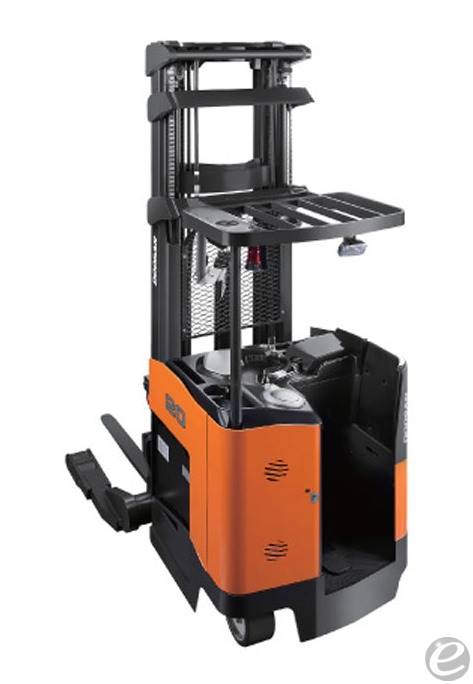

Electric Doosan BR20-7 Electric Narrow Aisle Single Reach

Call for priceNew

Contact Information

Florida Forklift Inc.
3221 N. 40th Street
Tampa, Florida 33605

CONTACT :

Florida Forklift

PHONE :

813-548-4081

FAX :

813-626-7800

Stock #:

Manufacturer:

Doosan

MODEL #:

BR20-7

CAPACITY:

4000

FUEL:

Electric

SUBCATEGORY:

Electric Narrow Aisle Single Reach

MAST TYPE:

Three Stage

SIDE SHIFTER:

Yes

CONDITION:

New

LOCATION:

Florida [33605]

Equipment Description:

This product was posted on 6/28/2024

General Information

Product Type: Reach Truck
Brand: Doosan
Model: BR20-7

Dimensions

Overall Length: 2,550 mm (100.39 in)
Overall Width: 1,280 mm (50.39 in)
Mast Height (Lowered): 3,025 mm (119.09 in)
Mast Height (Extended): 7,350 mm (289.37 in)
Fork Dimensions: 1,150 mm x 100 mm x 40 mm (45.28 in x 3.94 in x 1.57 in)

Performance

Load Capacity: 2,000 kg (4,409 lbs)
Load Center: 600 mm (23.62 in)
Max Lift Height: 10,500 mm (413.39 in)
Travel Speed: 12 km/h (7.46 mph) without load
Lifting Speed: 0.5 m/s (1.64 ft/s) with load

Engine and Batteries

Drive Motor: AC Motor
Lifting Motor: AC Motor
Battery Voltage/Capacity: 48 V / 775-930 Ah

Features

Tilt Function: Yes
Sideshift: Yes
Reach Function: Yes
Ergonomic Design: Yes
Operator Cabin: Comfortable with adjustable seat and armrest

Safety

Stability System: Advanced Stability Function
Automatic Speed Reduction: Yes
Overload Protection: Yes
