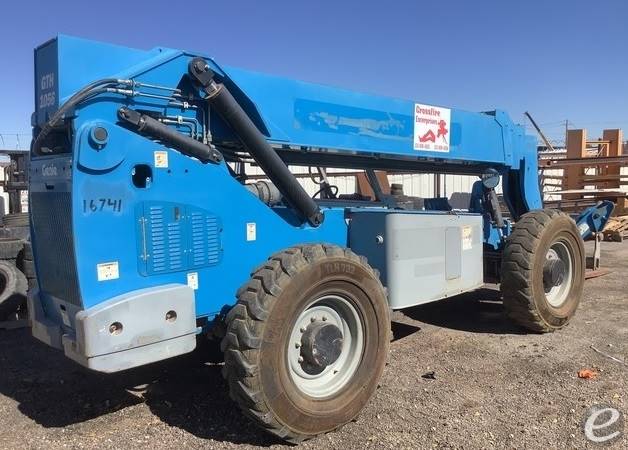

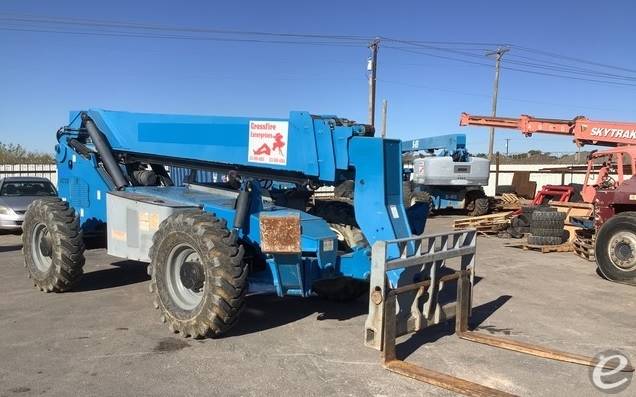

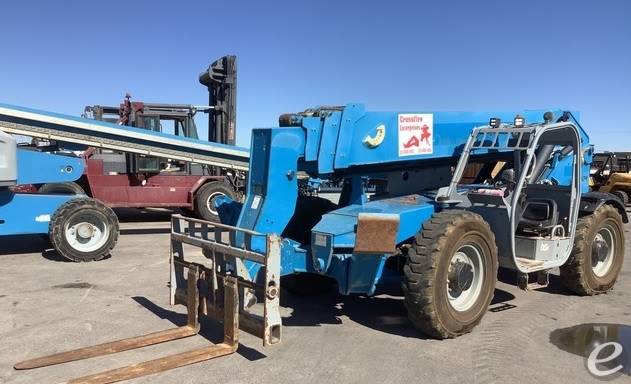

2013 Diesel Genie GTH1056 Pneumatic Tire 4 Wheel Sit Down

Call for price
Contact Information
CONTACT :
Sales Dept.
PHONE :
FAX :
Stock #:
YEAR:
2013
Manufacturer:
MODEL #:
CAPACITY:
10000
FUEL:
Diesel
MAST TYPE:
Telescopic
MAST HEIGHT:
54 in
SIDE SHIFTER:
Yes
CONDITION:
Used
HOUR METER:
4000
LOCATION:
DESCRIPTION:
54' Lift, 4X4, Out-riggers, 4004 Hours, Just In!
Equipment Description:
  • General Specifications
    • Model: Genie GTH-1056
    • Type: Telescopic Handler
    • Operator Type: Seated
  • Dimensions
    • Overall Length: 264 inches (670.6 cm)
    • Overall Height: 100 inches (254 cm)
    • Overall Width: 101 inches (256.5 cm)
    • Wheelbase: 148 inches (375.9 cm)
    • Ground Clearance: 16 inches (40.6 cm)
  • Performance
    • Maximum Lift Capacity: 10,000 lbs (4,536 kg)
    • Maximum Lift Height: 56 feet (17.07 m)
    • Maximum Forward Reach: 42 feet (12.8 m)
    • Drive Speed - Forward: 18 mph (29 km/h)
  • Engine
    • Engine Model: Perkins 1104D-E44T Tier III
    • Engine Type: Diesel
    • Gross Power: 100 hp (74.6 kW)
    • Displacement: 268 cubic inches (4.4 L)
    • Maximum Torque: 330 lb-ft (447 Nm)
  • Hydraulic System
    • Hydraulic Flow - Implement: 31 gallons per minute (117 L/min)
    • Hydraulic Pressure: 3,625 psi (245 bar)
  • Tires
    • Standard Tires: 400/75-28 diagonal
  • Brakes
    • Service Brakes: Wet disc
    • Parking Brake: Spring-applied hydraulic release
  • Weights
    • Operating Weight: 36,600 lbs (16,601 kg)
  • Operational
    • Turning Radius: 13 feet (3.97 m)
    • Fuel Tank Capacity: 40 gallons (151.4 L)
