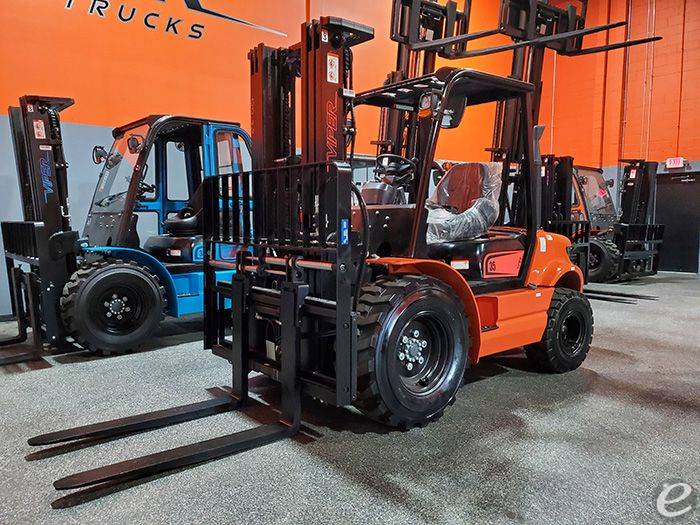

2024 Diesel Viper Lift Trucks RTD35 Pneumatic Tire 4 Wheel Sit Down

Call for priceNew
Contact Information
Illinois Lift Equipment
640 Industrial Dr
Cary, Illinois 60013
CONTACT :
John Hellyer
PHONE :
Stock #:
YEAR:
2024
Manufacturer:
MODEL #:
CAPACITY:
8000
FUEL:
Diesel
MAST TYPE:
Three Stage
MAST HEIGHT:
92 / 189 in
SIDE SHIFTER:
Yes
CONDITION:
New
LOCATION:
DESCRIPTION:
3 STAGE MAST, DIESEL FUEL, 8000LB CAPACITY
Equipment Description:

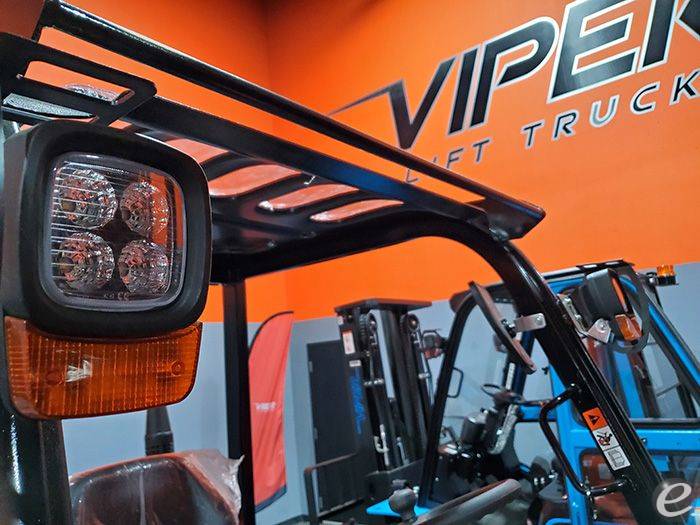

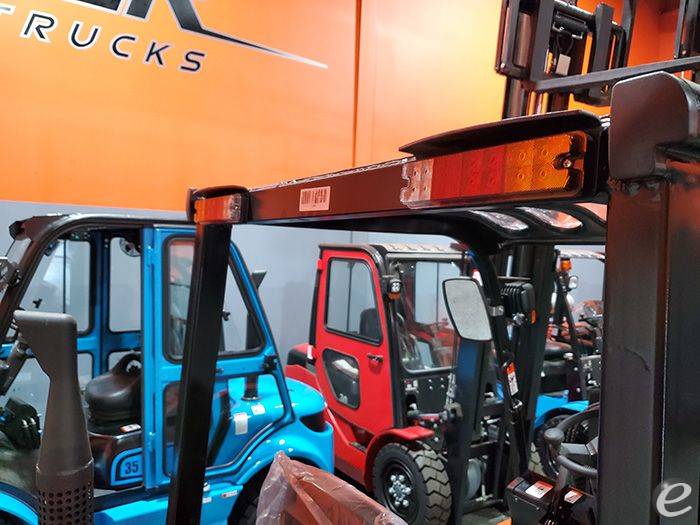

8000LB CAPACITY 3 STAGE MAST 92" LOWERED 189" RAISED DIESEL FUEL KOHLER KDI 1903 TURBO 1.9L ENGINE - MADE IN ITALY AIR PNEUMATIC TIRES LED LIGHT PACKAGE BACKUP ALARM, LIGHTS AND TURN SIGNALS PRE AIR CLEANER SIDE SHIFTER FORK POSITIONER 48" FORKS 12 MO / 2000 HOUR WARRANTY EXTENDED WARRANTIES AVAILABLE SERVICEABLE BY ANY DEALER IN THE UNITED STATES - PLEASE VISIT OUR WEBSITE AT WWW.ILLINOISLIFT.COM FOR MORE INVENTORY OR CONTACT JOHN HELLYER AT 630-417-0788 FOR MORE INFORMATION.
  • Model: RTD35
  • Load Capacity: 7,700 lbs (3,500 kg)
  • Power Type: Diesel
  • Engine: Kubota V2403
  • Engine Power: 48.9 hp (36.5 kW) at 2,700 rpm
  • Transmission Type: Automatic
  • Mast Type: 3-stage full free lift
  • Maximum Lift Height: 185 inches (4,700 mm)
  • Free Lift Height: 59 inches (1,500 mm)
  • Fork Dimensions: 45.3 inches (L) x 5.9 inches (W) x 2.0 inches (T)
  • Overall Length: 163 inches (4,140 mm)
  • Overall Width: 48 inches (1,220 mm)
  • Overall Height (Mast Lowered): 86 inches (2,180 mm)
  • Wheelbase: 79 inches (2,000 mm)
  • Turning Radius: 98 inches (2,480 mm)
  • Travel Speed (Loaded/Unloaded): 12/13 mph (19/21 km/h)
  • Gradeability (Loaded/Unloaded): 15% / 10%
  • Tilt Angle (Forward/Backward): 6°/12°
  • Tires: Pneumatic
  • Fuel Tank Capacity: 18.5 gallons (70 liters)
  • Operating Weight: 11,684 lbs (5,300 kg)
  • Brakes: Hydraulic
  • Steering Type: Hydraulic power steering
  • Seat Type: Adjustable suspension seat
  • Hydraulic System Pressure: 2,560 psi (17.6 MPa)
