1998 Raymond 20-4DR40TT

electric narrow aisle single reach

$22,950 USD
Instant Quote Eligible Listing - CLICK HERE!
World Equipment Services
CONTACT INFO
Name:
Brandon
Phone:

ADDRESS
World Equipment Services
800 S. Wineville Ave.
OntarioCalifornia 91761
ATTRIBUTES
STOCK #:
CES #21250
YEAR:
1998
Manufacturer:
MODEL #:
CAPACITY:
4000
FUEL:
Electric
MAST TYPE:
Three Stage
MAST HEIGHT:
87 / 226 in
SERIAL #:
020-88-27394
SIDE SHIFTER:
Yes
CONDITION:
Used
HOUR METER:
758
LOCATION:
N/A [92324]
DESCRIPTION:

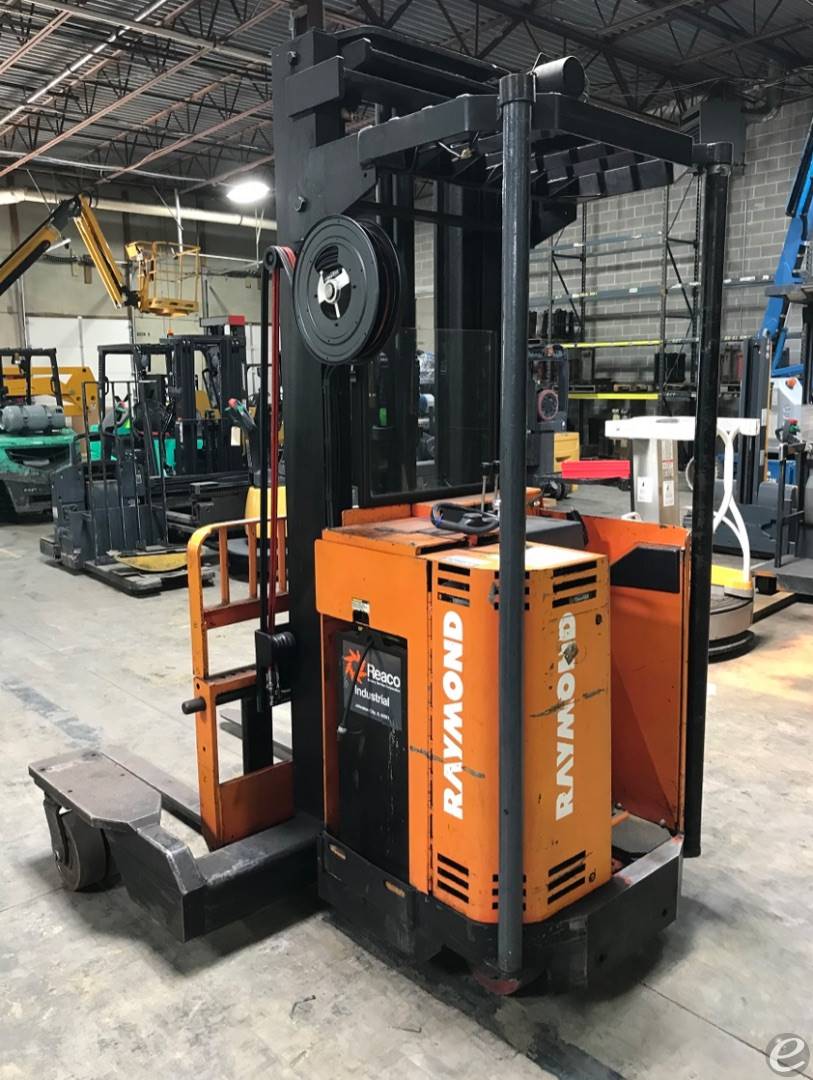

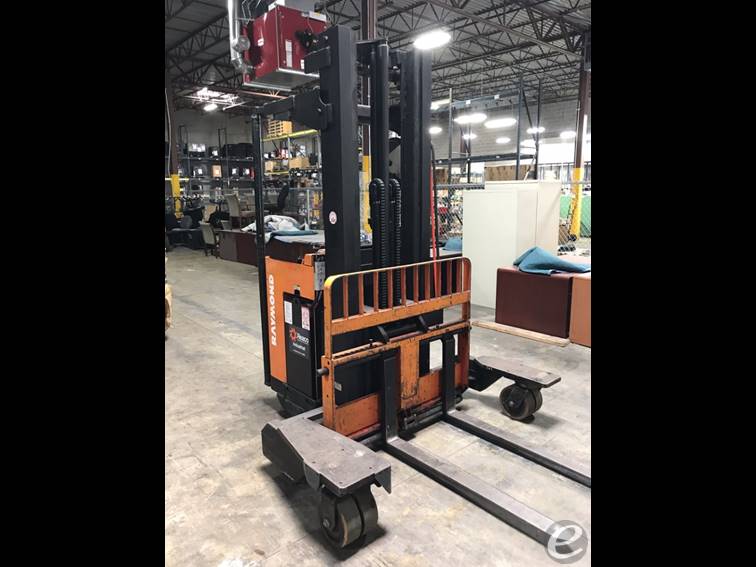

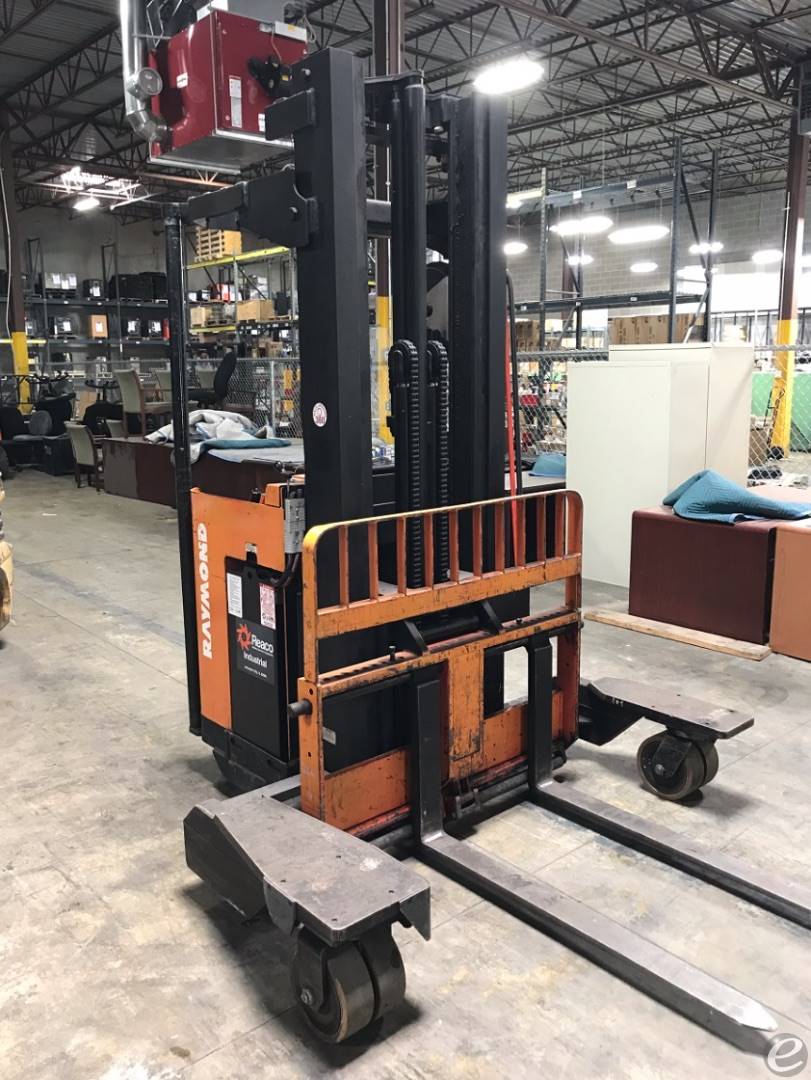

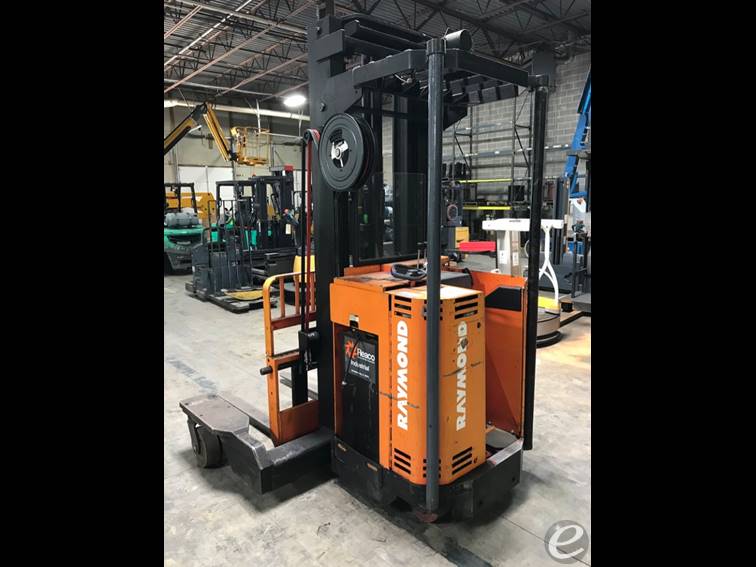

Raymond 4-Directional with a 2017 Battery and very low hours
POST DATE:
2/3/2025
Equipment Description

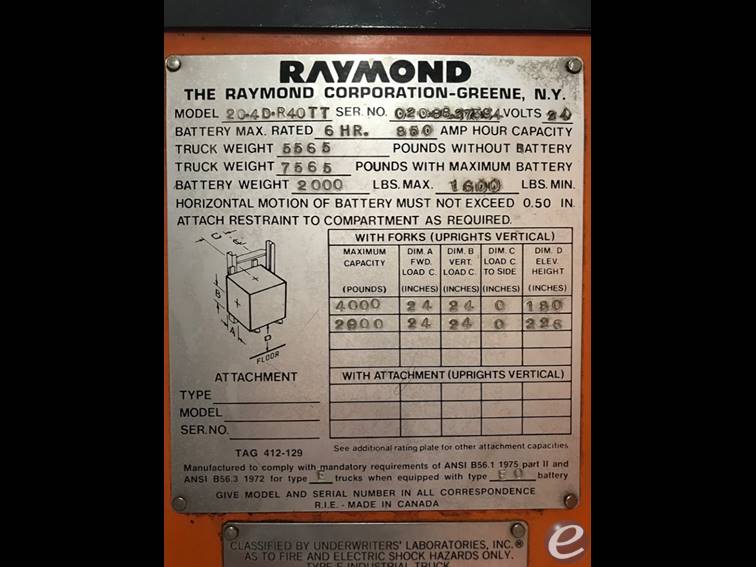

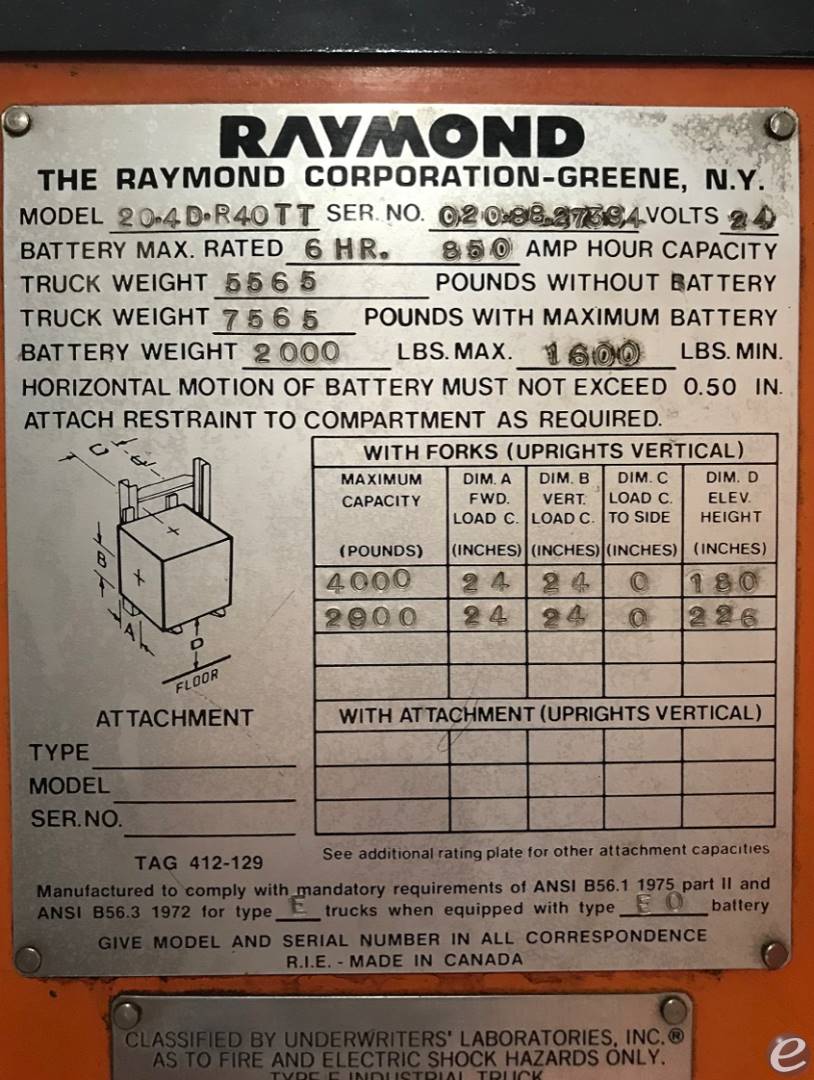

CES #21250 Raymond 20-4DR40TT 4 Directional Forklift SN #020-88-27394 Hours: 758 Capacity: 4000 lbs. Mast Min/Max: 87” / 226" Fork Length: 42" Battery Condition : 2017 Battery - Extremely High Quality Battery Voltage : 24 volts Overall Weight W/ Battery: 7565 Battery Charger Included : Yes, 3 Phase set at 240 volts Tires : 75% – New !!! (Upon Final Sale !!!) Brakes : Good Oil or Hydraulic Leaks : No Leaks: Lift, Tilt, and Side Shift Cylinders resealed. Paint : New Paint !!! Warranty : 60 Days on entire forklift
  • General Information
    • Manufacturer: Raymond
    • Model Number: 20-4DR40TT
    • Type: Forklift
    • Subtype: Electric Narrow Aisle Single Reach
    • Fuel Type: Electric
  • Dimensions
    • Overall Length: Approx. 8.75 ft (varies with fork length)
    • Overall Width: Approx. 3 ft
    • Wheelbase: Approx. 5 ft
    • Ground Clearance: Approx. 3 in
  • Weight
    • Service Weight: Approx. 8,500 lbs (varies with battery size)
  • Load Handling
    • Load Capacity: 4,000 lbs
    • Reach Type: Single Reach
    • Fork Length: Varies
  • Performance
    • Travel Speed (Loaded): Approx. 5.5 mph
    • Travel Speed (Unloaded): Approx. 6 mph
    • Lift Speed (Loaded): Approx. 35 ft/min
    • Lift Speed (Unloaded): Approx. 55 ft/min
    • Lowering Speed (Loaded): Approx. 50 ft/min
    • Lowering Speed (Unloaded): Approx. 40 ft/min
  • Electrical System
    • Battery Voltage: 36V
    • Battery Type: Lead Acid or Lithium-Ion (optional)
    • Battery Capacity: Varies based on selection
  • Tires
    • Front Tires: Polyurethane
    • Rear Tires: Polyurethane
  • Additional Features
    • Operator Display: LCD Screen for Operational Data
    • Steering: Electric Power Steering
    • Braking System: Regenerative Braking
    • Ergonomic Design with Adjustable Controls
