Equipment Description:

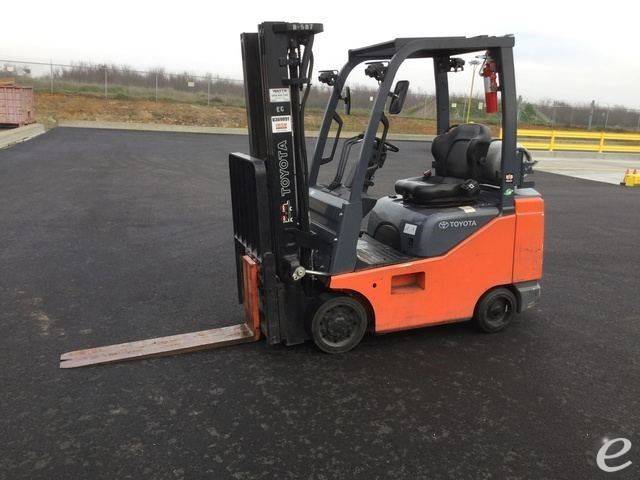

2016 LP Gas Toyota 8FGCSU20 Cushion Tire 4 Wheel Sit Down (Indoor Warehouse)

Call for price

Contact Information

Select Equipment Sales
6911 8th St
Buena Park, California 90620

CONTACT :

Sales Dept.

PHONE :

FAX :

Stock #:

U190742

YEAR:

2016

Manufacturer:

MODEL #:

CAPACITY:

4000

FUEL:

LP Gas

SUBCATEGORY:

MAST TYPE:

Three Stage

MAST HEIGHT:

83 / 189 in

SIDE SHIFTER:

Yes

CONDITION:

Used

HOUR METER:

2800

LOCATION:

DESCRIPTION:

Side-Shift, 3 Way Valve, 2800 Hours

Equipment Description:

This product was posted on 10/30/2024

General Specifications
- Model: 8FGCSU20
- Manufacturer: Toyota
- Type: Internal Combustion Forklift
- Fuel Type: LPG (Liquefied Petroleum Gas)
- Load Capacity: 4,000 lbs
Engine Specifications
- Engine Model: Toyota 4Y
- Rated Power: 47 kW (63 HP) at 2700 rpm
- Displacement: 2.2 L
Dimensions
- Length to Fork Face: 91.5 inches
- Overall Width: 42 inches
- Height to Top of Overhead Guard: 80.7 inches
- Wheelbase: 59.1 inches
Mast Specifications
- Standard Mast Type: 2-Stage Limited Free Lift (LFL)
- Maximum Fork Height: 131 inches
- Overall Lowered Height: 83 inches
- Overall Extended Height with Load Backrest: 179 inches
Tire Specifications
- Tires: Solid Pneumatic
- Front Tires: 21 x 7 – 15
- Rear Tires: 16 x 5 – 10 1/2
Performance
- Travel Speed (Loaded): 11.8 mph
- Lifting Speed (Loaded): 118 ft/min
- Turning Radius (Outside): 78.7 inches
Weight
- Service Weight: 6,950 lbs
Additional Features
- Seat: Full-suspension vinyl seat
- Operator Assist: Standard SAS (System of Active Stability)
- Hydraulic Control: Fingertip control levers
