Equipment Description:

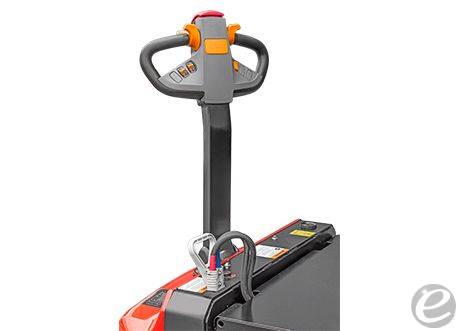

The Walkie Reach, Straddle, or Counterbalance Stacker series can handle dock-to-stock and everything in between. The Hangcha Walkie Stacker product’s advantageous head-length and multi-function, control handle with EPS (Electric Power Steering) system gives you incredible load handling control with excellent maneuverability. The standard creep speed feature can take your operator’s materials handling capabilities to their full potential. The Walkie Stacker series can match your most demanding operational requirements

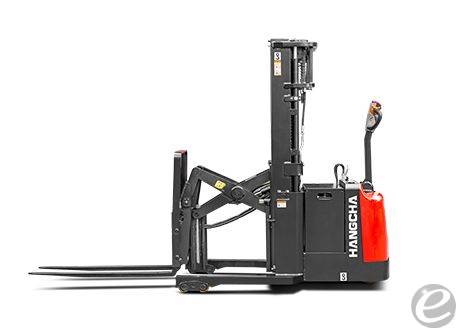

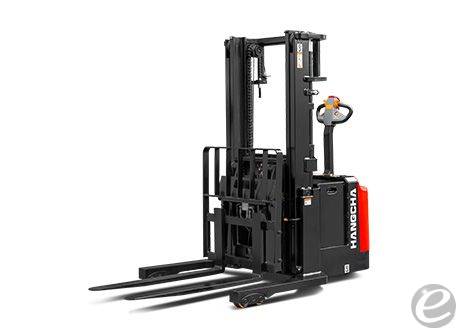

Electric Hangcha CQDB14-AC1-JNA Electric Walkie Straddle Stacker Reach

Call for priceNew

Contact Information

Florida Forklift Inc.
3221 N. 40th Street
Tampa, Florida 33605

CONTACT :

Florida Forklift

PHONE :

813-548-4081

FAX :

813-626-7800

Stock #:

Manufacturer:

Hangcha

MODEL #:

CQDB14-AC1-JNA

CAPACITY:

3000

FUEL:

Electric

SUBCATEGORY:

Electric Walkie Straddle Stacker Reach

MAST HEIGHT:

80.3 / 106.3 in

CONDITION:

New

LOCATION:

Florida

Equipment Description:

This product was posted on 6/28/2024

General Information
- Model: Hangcha CQDB14-AC1-JNA
- Type: Electric Reach Truck
Load Capacity
- Maximum Load Capacity: 1,400 kg
Dimensions
- Overall Length: 2,360 mm
- Overall Width: 1,060 mm
- Overall Height (Mast Lowered): 2,230 mm
- Wheelbase: 1,460 mm
Lift and Reach Specifications
- Maximum Lift Height: 4,500 mm
- Free Lift: 1,510 mm
Performance
- Travel Speed (laden/unladen): 7.5/8.5 km/h
- Lift Speed (laden/unladen): 0.22/0.34 m/s
- Lowering Speed (laden/unladen): 0.40/0.36 m/s
- Gradeability (laden/unladen): 8/15 %
Weight
- Total Weight: Approximately 2,700 kg
Power Source
- Battery Voltage: 24V
- Battery Capacity: 560 Ah
Wheels
- Wheel Type: Polyurethane
- Steering Wheel Size: 310 mm
Additional Features
- AC Drive Technology
- Ergonomic Cabin Design
