Equipment Description:

AVAILABLE CAPACITIES: 2,000-4,000 LBS FEATURES: The walkie counterbalanced stacker, in addition to all spaces where general stackers may be used, can also play its role in spaces where general stackers cannot be used because enclosed pallets are used, there has little clearance between ground and pallet, and/or has no clearance for leg extension under shelves. Cutting-edge AC driving control technology and electric power steering technology are applied for the truck, which oer excellent performance, comfortable operation, safety and reliability, and low operation and maintenance cost. The stacker is an ideal tool for loading, unloading, and handling palletized goods in warehouse, supermarket, and workshop

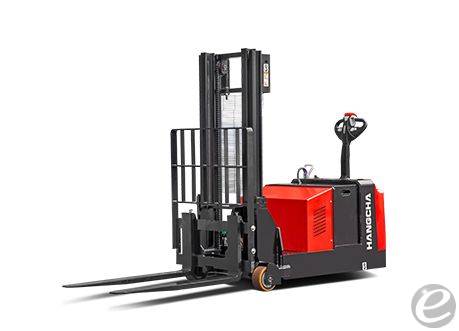

Hangcha CPD18-AC1-NA Electric Walkie Counterbalanced Stacker

Call for priceNew

Contact Information

Florida Forklift Inc.
3221 N. 40th Street
Tampa, Florida 33605

CONTACT :

Florida Forklift

PHONE :

813-548-4081

FAX :

813-626-7800

Stock #:

Manufacturer:

Hangcha

MODEL #:

CPD18-AC1-NA

CAPACITY:

4000

SUBCATEGORY:

Electric Walkie Counterbalanced Stacker

MAST HEIGHT:

78.4 / 156.2 in

CONDITION:

New

LOCATION:

Florida

Equipment Description:

This product was posted on 6/28/2024

Model: Hangcha CPD18-AC1-NA
Load Capacity: 3,968 lbs (1800 kg)
Load Center: 19.7 in (500 mm)
Power Type: Electric
Voltage: 48V
Battery Capacity: 420 Ah

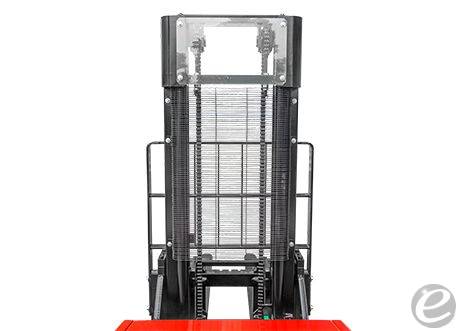

Mast Type: 2-stage or 3-stage options
Lift Height: Up to 177 in (4500 mm)
Free Lift: Depends on mast configuration
Travel Speed (Loaded/Unloaded): Approximately 10 mph (16 km/h)
Lift Speed (Loaded/Unloaded): Approximately 59 fpm (0.3 m/s)
Lowering Speed (Loaded/Unloaded): Approximately 98 fpm (0.5 m/s)
Turning Radius: 72.6 in (1845 mm)
Overall Width: 45.7 in (1160 mm)
Overall Length (without Forks): 133.7 in (3395 mm)
Overall Height (Mast Lowered): Varies by mast type
Fork Dimensions: Typically 42 in (1070 mm) length
Tilt Angle (forward/backward): 6°/12°
Weight (without Load): Approximately 7,580 lbs (3440 kg)
Tire Type: Pneumatic or cushion options
Control Type: AC Drive motor
Brake System: Hydraulic/Electric
