Equipment Description:

AVAILABLE CAPACITIES: 3,000-4,000 LBS. FEATURES: High eciency AC driving motor Multi-functions instrument Front dual driving motors Rubber floor mat Solid tyre Emergency disconnect switch 2-valve inside chassis LED headlight Rear combination LED light Panoramic rearview mirror (in the middle position of the overhead guard) 118.1 inch duplex wide view mast Adjustable steering column Full electronic controlled travelling, lifting and steering Horn and reversing buzzer Toolbox and file folder CAN-BUS system Low noise gear pump (Brand: Shimadzu, Made in Japan) Full hydraulic steering Soft landing system Non suspension seat: Grammer GS12 with switch ZF reducer and SCHABMULLER traveling motor

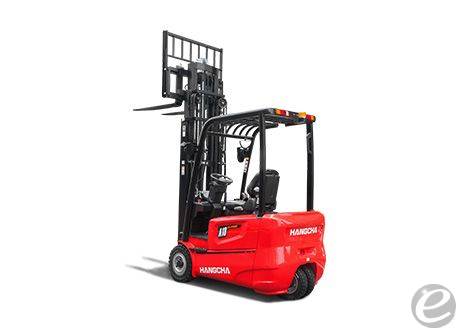

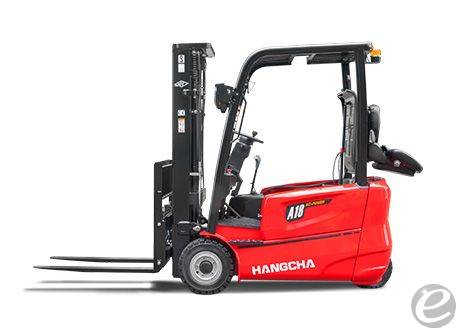

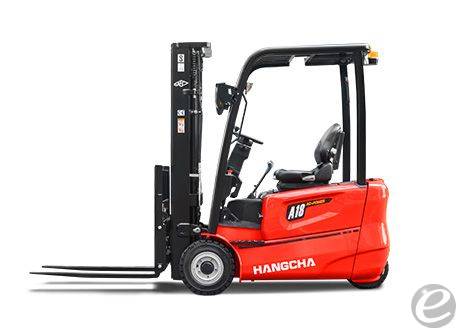

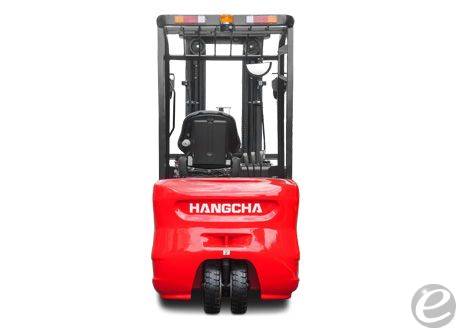

Electric Hangcha CPDS18-AC6 Electric 3 Wheel Sit Down

Call for priceNew

Contact Information

Florida Forklift Inc.
3221 N. 40th Street
Tampa, Florida 33605

CONTACT :

Florida Forklift

PHONE :

813-548-4081

FAX :

813-626-7800

Stock #:

CALL FOR INVENTORY

Manufacturer:

Hangcha

MODEL #:

CPDS18-AC6

CAPACITY:

3500

FUEL:

Electric

SUBCATEGORY:

Electric 3 Wheel Sit Down

MAST TYPE:

Three Stage

MAST HEIGHT:

78.5 / 155.3 in

SIDE SHIFTER:

Yes

CONDITION:

New

LOCATION:

Florida

Equipment Description:

This product was posted on 6/28/2024

Model: CPDS18-AC6
Power Source: Electric
Load Capacity: 1,800 kg
Load Center: 500 mm
Lift Height: 3,000 mm standard, with options available for different heights
Free Lift: 170 mm
Fork Size: 920 mm length, 100 mm width, 35 mm thickness
Tilt Angle: 6° forward, 9° backward
Minimum Turning Radius: 1,905 mm
Length to Face of Fork: 2,146 mm
Overall Width: 1,070 mm
Height (mast lowered): 1,990 mm
Height (mast raised): 3,996 mm
Height to Overhead Guard: 2,050 mm
Wheelbase: 1,400 mm
Weight: Approximately 3,350 kg
Tire Type: Cushion
Battery Voltage/Capacity: 48V/400 Ah
Travel Speed (loaded/unloaded): 13 km/h loaded, 14 km/h unloaded
Lifting Speed (loaded/unloaded): 270 mm/s loaded, 440 mm/s unloaded
Lowering Speed (loaded/unloaded): 430 mm/s loaded, 430 mm/s unloaded
Gradeability (loaded/unloaded): 15% loaded, 20% unloaded
Brake Type: Hydraulic
Control Type: AC Motor Control
Steering: Power Steering
