Equipment Description:

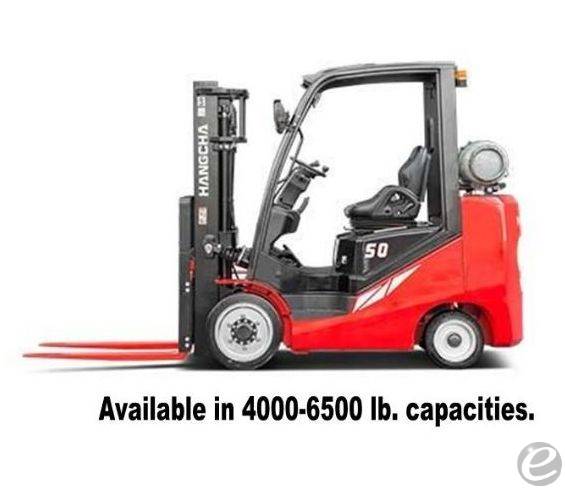

AVAILABLE IN CAPACITIES 4,000-6,00 LBS. FEATURES: Traction unit Small-diameter steering wheel Integrated combination switch Extended hand grip Steering wheel adjusting device Cable-type parking brake (with self-lock) Suspension seat with safety belt Large-capacity aluminum radiator Dynamic load sensing system Suspension integral overhead guard Whirlwind high-eciency air filter Hydraulic oil suction filter element Rain cover of overhead guard Safe filter element Inclined oil way latching valve Full-view rear view mirror High-eciency exhaust muler Hydraulic oil dipstick High-performance tire Access/exit safe step High-eciency LED combination front lamp Toolbox Large rubber pedal pad High-eciency LED combination rear lamp Full floating transmission Steering wheel adjusting device Maintenance-free battery Wider carriage Special fork Transmission oil filter element Hydraulic oil return oil filter element Combined LCD meters Gearbox dipstick Engine hood spring Integrated controller Gearbox oil cooler File folder Alarm light Non-asbestos brake Electro-hydraulic steering Charging reminder Load-sensing steering system Suspension operation pedal Oil gauge Water thermometer Cup holder Preheating indication Duplex wide-view mast Charge indication Standard fork Timer Standard carriage Engine oil pressure alarm Standard back rest Gearbox oil temperature alarm Maintenance reminder Load safety valve Horn Soft landing system Reversing buzzer Mast lifting buer device Tilt piston rod jacket Fan protector Reversing assist grip with horn button Front acoustic hood of steering wheels Low LPG fuel warning indicator Double soundproof pad of hood Swing-out LP bracket Speed control switch Smooth cushion tire

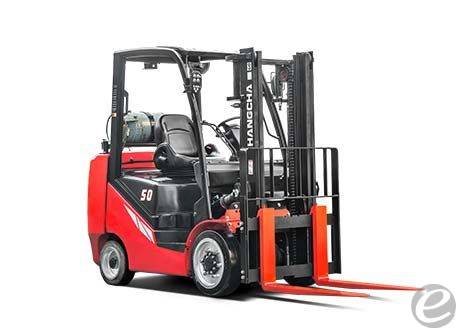

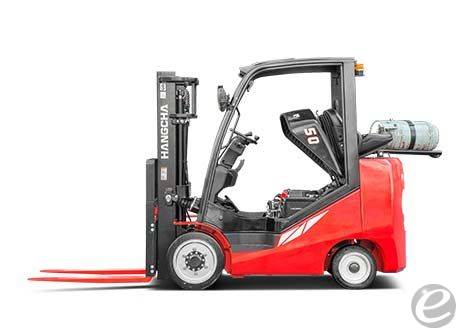

LP Gas Hangcha CPYD32-XW71F-C Cushion Tire 4 Wheel Sit Down (Indoor Warehouse)

Call for priceNew

Contact Information

Florida Forklift Inc.
3221 N. 40th Street
Tampa, Florida 33605

CONTACT :

Florida Forklift

PHONE :

813-548-4081

FAX :

813-626-7800

Stock #:

CALL FOR INVENTORY

Manufacturer:

Hangcha

MODEL #:

CPYD32-XW71F-C

CAPACITY:

5000

FUEL:

LP Gas

SUBCATEGORY:

Cushion Tire 4 Wheel Sit Down (Indoor Warehouse)

MAST TYPE:

Three Stage

MAST HEIGHT:

77.6 / 163.2 in

SIDE SHIFTER:

Yes

CONDITION:

New

LOCATION:

Florida

Equipment Description:

This product was posted on 6/28/2024

General Information
- Model: Hangcha CPYD32-XW71F-C
- Type: Internal Combustion Forklift
Engine Specifications
- Engine Model: Nissan K25
- Engine Type: 4-cylinder, liquid-cooled
- Displacement: 2.488 liters
- Rated Power: 37.4 kW (50.2 HP) at 2450 rpm
Performance
- Load Capacity: 3200 kg
- Lift Height: up to 6000 mm
- Travel Speed (Loaded/Unloaded): 18/19 km/h
- Lifting Speed (Loaded/Unloaded): 500/530 mm/s
Dimensions
- Length without Forks: 2765 mm
- Overall Width: 1230 mm
- Mast Lowered Height: 2115 mm
- Mast Extended Height: 4260 mm
- Ground Clearance (Bottom of Mast): 150 mm
Weight
- Service Weight: 4540 kg
Tires
- Front Tires: 28x9-15-12PR
- Rear Tires: 6.50-10-10PR
Brakes
- Service Brake: Hydraulic
- Parking Brake: Mechanical/Hydraulic
Transmission
- Type: Torque Converter
- Number of Speeds: 1 Forward, 1 Reverse

Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.
