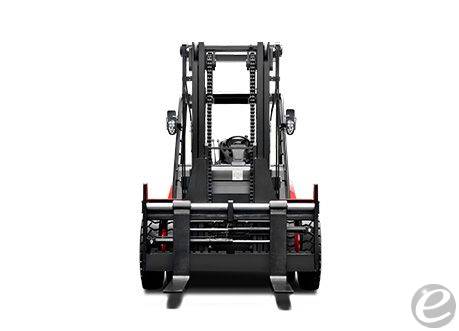

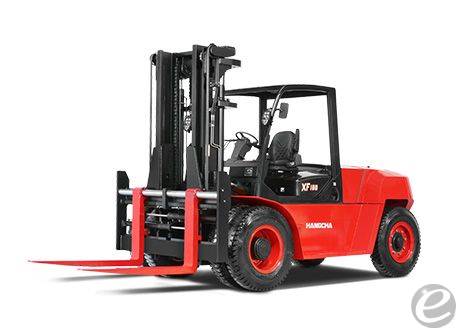

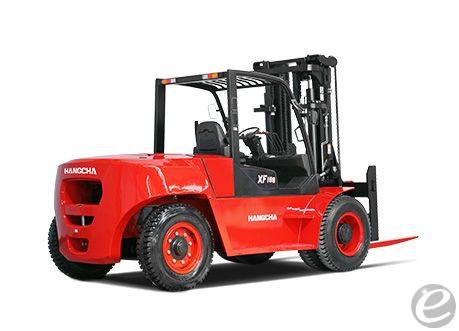

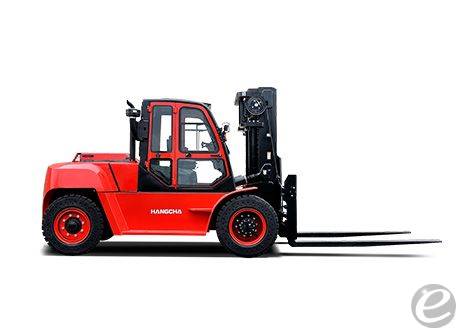

Hangcha CPCD100-XW75G

diesel pneumatic tire 4 wheel sit down

Call for priceNew
CONTACT INFO
Name:
Florida Forklift
Phone:

ADDRESS
Florida Forklift Inc.
3221 N. 40th Street
TampaFlorida 33605
ATTRIBUTES
STOCK #:
CALL FOR INVENTORY
Manufacturer:
MODEL #:
CAPACITY:
22000
FUEL:
Diesel
MAST TYPE:
Two Stage
MAST HEIGHT:
112.2 / 178.9 in
SIDE SHIFTER:
Yes
CONDITION:
New
LOCATION:
POST DATE:
2/21/2025
Equipment Description
AVAILABLE IN 17,500-22,000 LB CAPACITY OPTIONS: Floating cabin Cabin heater Front window Super elastic tyre Non-mark tyre(white/green) Suspension seat Extinguisher Special given color Boot for tilt cylinder Counter weight net Seat sensor system Wet brake Upright exhaust system Air pre-cleaner Net cover of radiator Spark arrester Purified exhaust system Fan protector Auxiliary hydraulic valve Electro-hydraulic Proportional control system OBD Front working light Rear working light Warning lamp Duplex wide view free-lift mast Triplex wide view free-lift mast Special forks Wider fork carriage Wider load back rest
  • Model Number: CPCD100-XW75G
  • Manufacturer: Hangcha
  • Type: Forklift
  • Subtype: Pneumatic Tire 4 Wheel Sit Down
  • Fuel Type: Diesel
  • Engine Specifications
    • Engine Type: Diesel
    • Engine Manufacturer: Typically associated with ISUZU or similar
    • Displacement: Approx. 6 liters
    • Cylinders: 6
  • Dimensions
    • Overall Length: Approximately 189 inches (excluding forks)
    • Overall Width: Approximately 82 inches
    • Overall Height (overhead guard): Approximately 110 inches
    • Wheelbase: Approximately 108 inches
    • Ground Clearance: Approximately 9 inches
  • Performance
    • Load Capacity: 22,000 lbs
    • Travel Speed: Approximately 17 mph
    • Lift Speed: Standard, varies with load
    • Gradeability: Approximately 29% (laden)
    • Drawbar Pull: High, varies with model specifics
  • Chassis
    • Tires: Pneumatic
    • Drive Wheels: 4
    • Steering: Power-assisted
  • Weight
    • Overall Weight: Approximately 32,000 lbs
  • Fuel System
    • Fuel Capacity: Approximately 29 gallons
  • Hydraulics
    • Hydraulic Tank Capacity: Approximately 29 gallons
    • Number of Hydraulic Functions: Standard 3-4 functions
  • Operator Environment
    • Seating: Adjustable with suspension
    • Cabin: Optional enclosed cabin
    • Instrumentation: Standard gauges and warning indicators
