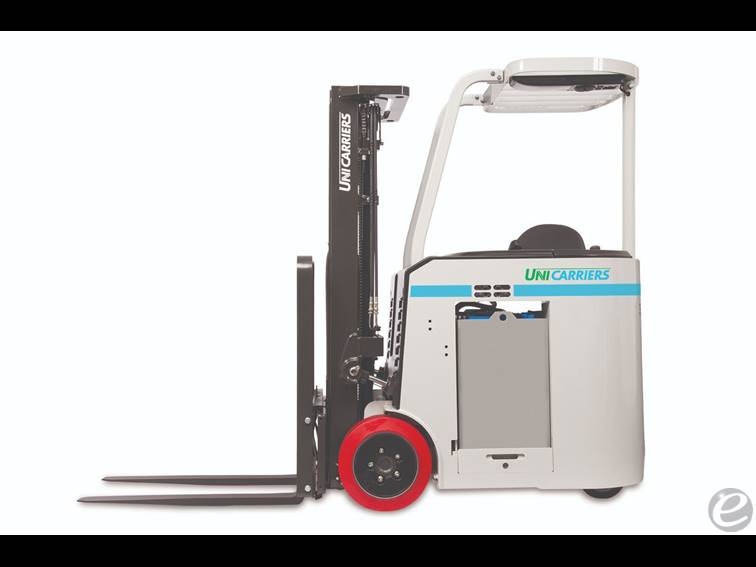

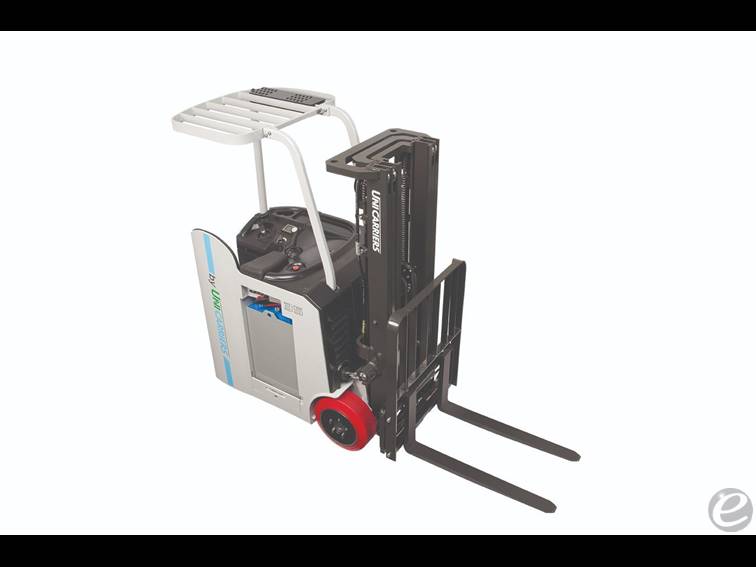

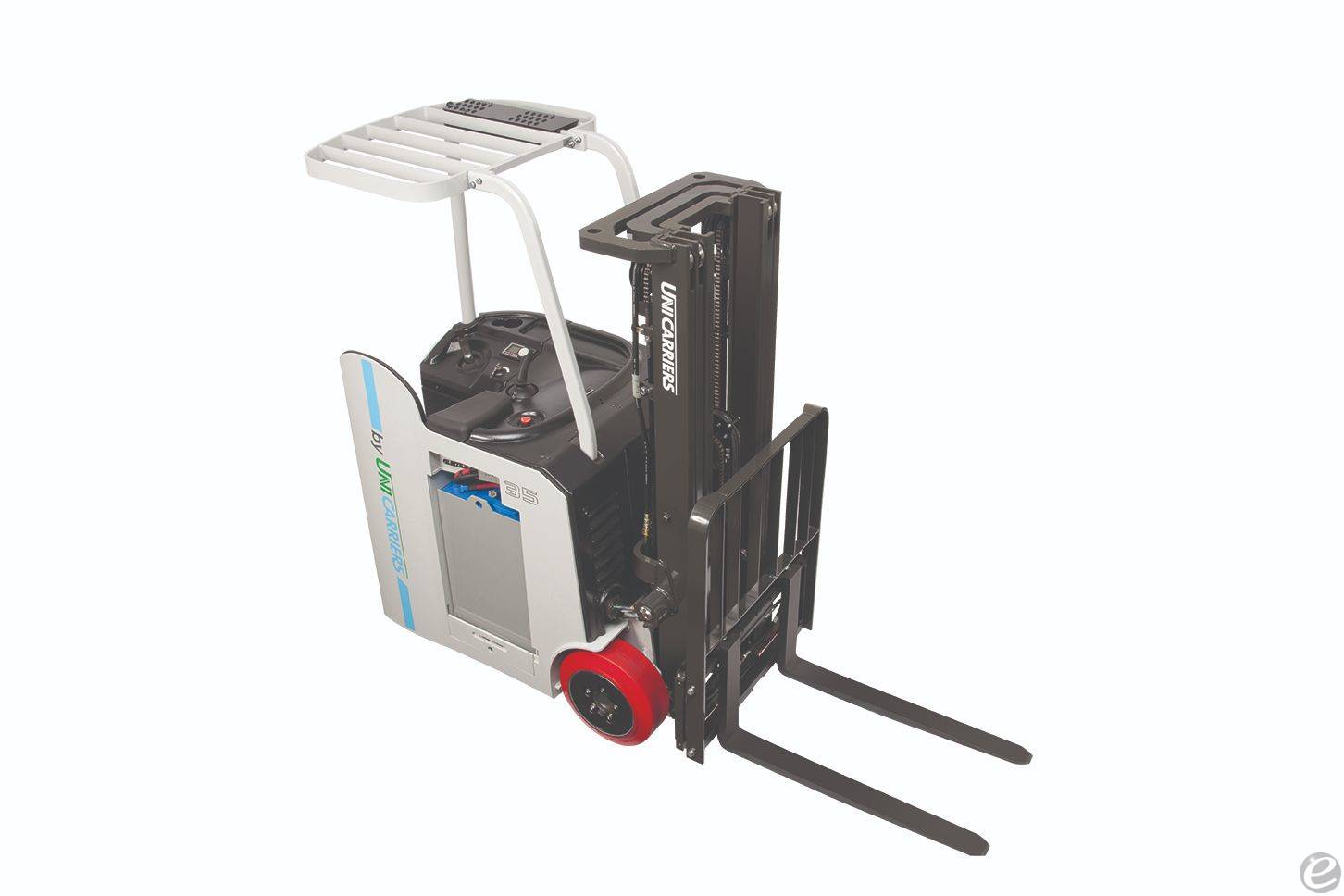

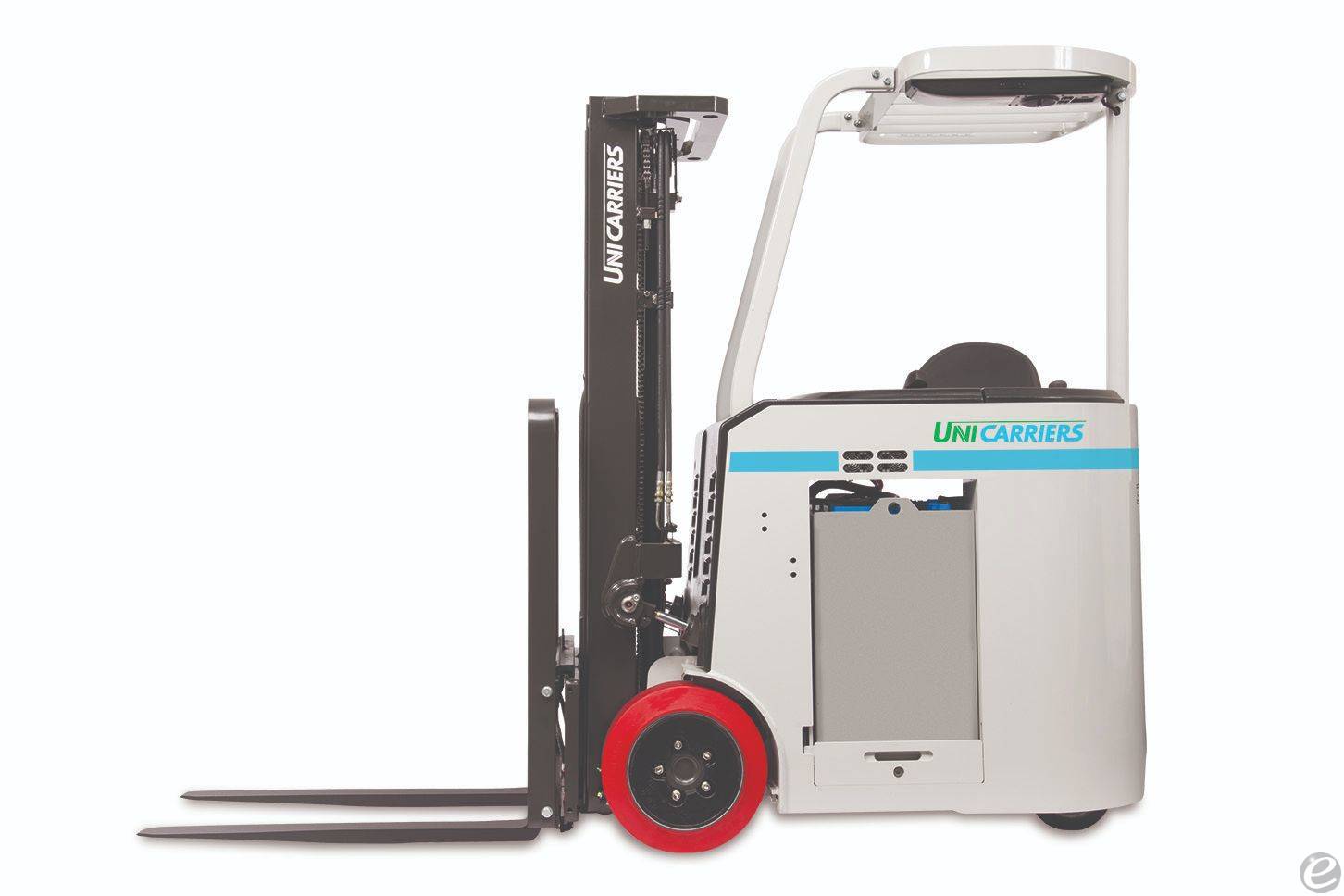

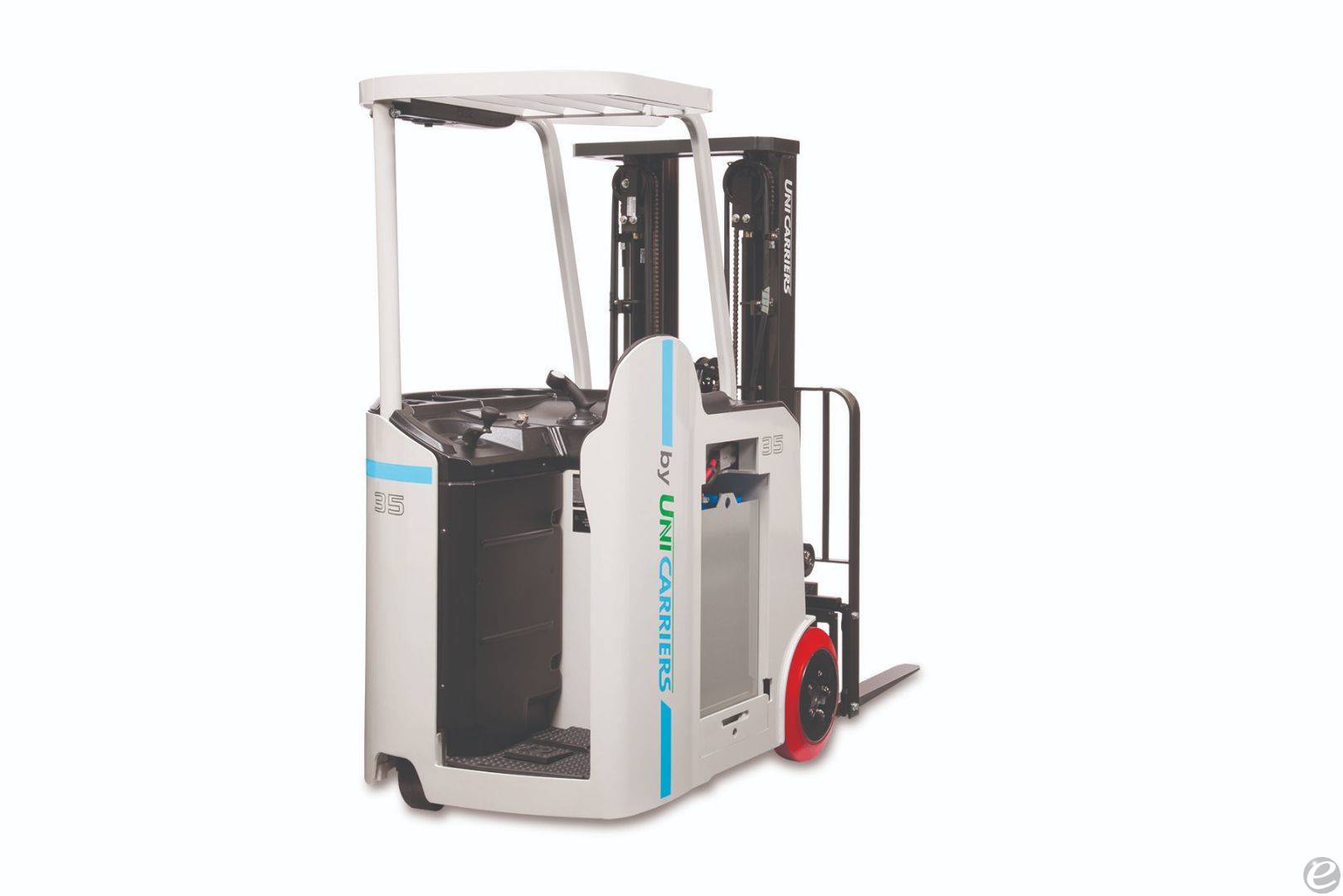

Unicarriers SCX SERIES

electric stand up end control (docker)

Call for priceNew
Florida Forklift Inc.
CONTACT INFO
Name:
Florida Forklift
Phone:

ADDRESS
Florida Forklift Inc.
3221 N. 40th Street
TampaFlorida 33605
ATTRIBUTES
Manufacturer:
MODEL #:
CAPACITY:
3500
FUEL:
Electric
MAST TYPE:
Three Stage
MAST HEIGHT:
83.2 / 179.3 in
SIDE SHIFTER:
Yes
CONDITION:
New
LOCATION:
DESCRIPTION:
AVAILABLE IN 3,000,3500, 4000 LB CAPACITIES
POST DATE:
2/21/2025
Equipment Description
100% AC brushless motor system includes hydraulic motor and dual drive motors Precision tuned motors / controller Meter panel to set performance parameters & access operating information Five customized performance profile settings / PIN access Built-in thermal sensors: soft mode auto speed reduction limits travel & tilt under certain driving conditions Hall Effect sensors and encoders — plus magnetic reed switches and inductive proximity switches State-of-the-art CAN-Bus Network continuously monitors truck performance Shortest step height in the industry (8.4") & wide compartment entry Padded armrest, an extra tall 57" backrest, super thick floor mat and optional kneepad Platform vibration isolators to absorb shocks Large 18" drive tires
  • General Information
    • Model Number: SCX SERIES
    • Manufacturer: Unicarriers
    • Type: Forklift
    • Subtype: Electric Stand Up End Control (Docker)
    • Fuel Type Used: Electric
  • Performance
    • Load Capacity: 3,000 - 4,000 lbs
    • Travel Speed: Up to 6.5 mph (loaded)
    • Lift Speed: Approximately 60-80 feet per minute (loaded)
    • Battery Voltage: 36V or 48V
    • Turning Radius: About 5.5 feet
  • Dimensions
    • Overall Length: Approximately 7 feet (varies with fork length)
    • Overall Width: Around 3.5 feet
    • Height to Top of Operator Compartment: Roughly 6.5 feet
    • Wheelbase: Approximately 5 feet
  • Tire Information
    • Tires: Cushion
    • Tire Size Front: Approximately 18 x 7 inches
    • Tire Size Rear: About 13 x 5 inches
  • Operator Features
    • Stand-Up End Control Design
    • Multi-Function Control Handle
    • Electric Power Steering
    • Spacious Operator Compartment
    • Cushioned Platform for Operator Comfort
  • Safety Features
    • Automatic Braking System
    • Overhead Guard
    • Load Backrest Extension
    • LED Work Lights
    • Emergency Power Disconnect
  • Additional Options
    • Various Fork Lengths
    • Cold Storage Conditioning
    • Attachment Adaptability (e.g., carton clamps, slip sheets)
