Equipment Description:

Axle based 4WD system Operator controlled locking rear differential and limited slip front differential Oscillating axle Drivable at full height Dual capacity rating 45% Gradeability Diesel engine Swing out engine tray Swing up cowlings Modular platform railing system Tri-entry sliding mid rails 110V AC outlet on platform with GFI Direction sensing drive and steer controls Proportional controls Relay based control system Color coded and numbered wiring 360° continuous turret rotation Hourmeter Operator horn All motion alarm Tie down points Wet disc SAHR brakes (front and rear axle) 18 x 625 grip lug foam filled tires Telematics ready

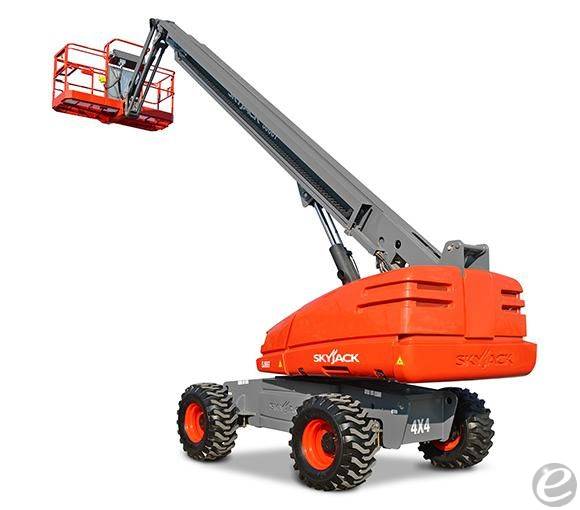

AC Power Skyjack SJ66 T Telescopic Boom

Call for priceNew

Contact Information

Florida Forklift Inc.
3221 N. 40th Street
Tampa, Florida 33605

CONTACT :

Florida Forklift

PHONE :

813-548-4081

FAX :

813-626-7800

Stock #:

Manufacturer:

Skyjack

MODEL #:

SJ66 T

Drive:

4WD

SUBCATEGORY:

Telescopic Boom

Height:

FUEL:

AC Power

CONDITION:

New

LOCATION:

Florida

DESCRIPTION:

SJ61 T ALSO AVAILABLE IN 67' 3" HEIGHT

Equipment Description:

This product was posted on 6/28/2024

Overview
- Type: Telescopic Boom Lift
- Manufacturer: Skyjack
- Model: SJ66 T
Performance Specifications
- Working Height: 72 ft (21.95 m)
- Platform Height: 66 ft (20.12 m)
- Horizontal Reach: 57 ft (17.37 m)
- Up and Over Clearance: 27 ft 6 in (8.38 m)
- Maximum Drive Height: 66 ft (20.12 m)
- Lift Capacity: 750 lbs (340 kg)
- Platform Rotation: 180 degrees
- Turntable Swing: 360 degrees Continuous
- Gradeability: 40%
- Travel Speed - Stowed: 4.5 mph (7.2 km/h)
- Travel Speed - Raised: 0.68 mph (1.1 km/h)
Dimensions
- Platform Size: 36 in x 96 in (0.91 m x 2.44 m)
- Overall Width: 8 ft 1 in (2.47 m)
- Overall Length: 30 ft (9.14 m)
- Overall Height (Stowed): 8 ft 9 in (2.67 m)
- Wheelbase: 8 ft 5 in (2.56 m)
- Ground Clearance: 1 ft 2 in (0.36 m)
Weights
- Machine Weight: 28,060 lbs (12,725 kg)
Power Source
- Power Source: Diesel
- Engine Model: Deutz D2.9L4
- Horsepower: 49 hp (36.5 kW)
- Fuel Tank Capacity: 40 gal (151 L)
Tires
- Type: Foam-Filled
- Size: 355/55D 625
Features
- Proportional Controls

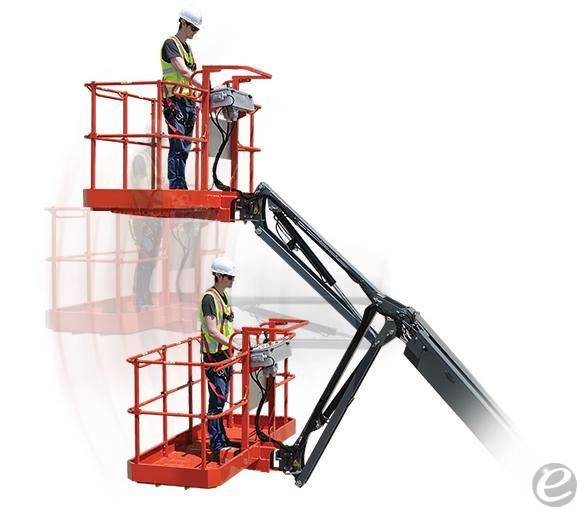

- AJ (Articulating Jib)
- Oscillating Axle
- Drivable at Full Height
- Operator Controlled Rear Axle Lock
