2018 Diesel Genie SX180

Chicago Industrial Equipment Rockdale, Illinois (289 miles away)

Overview
Spec Sheet
Shipping/Freight

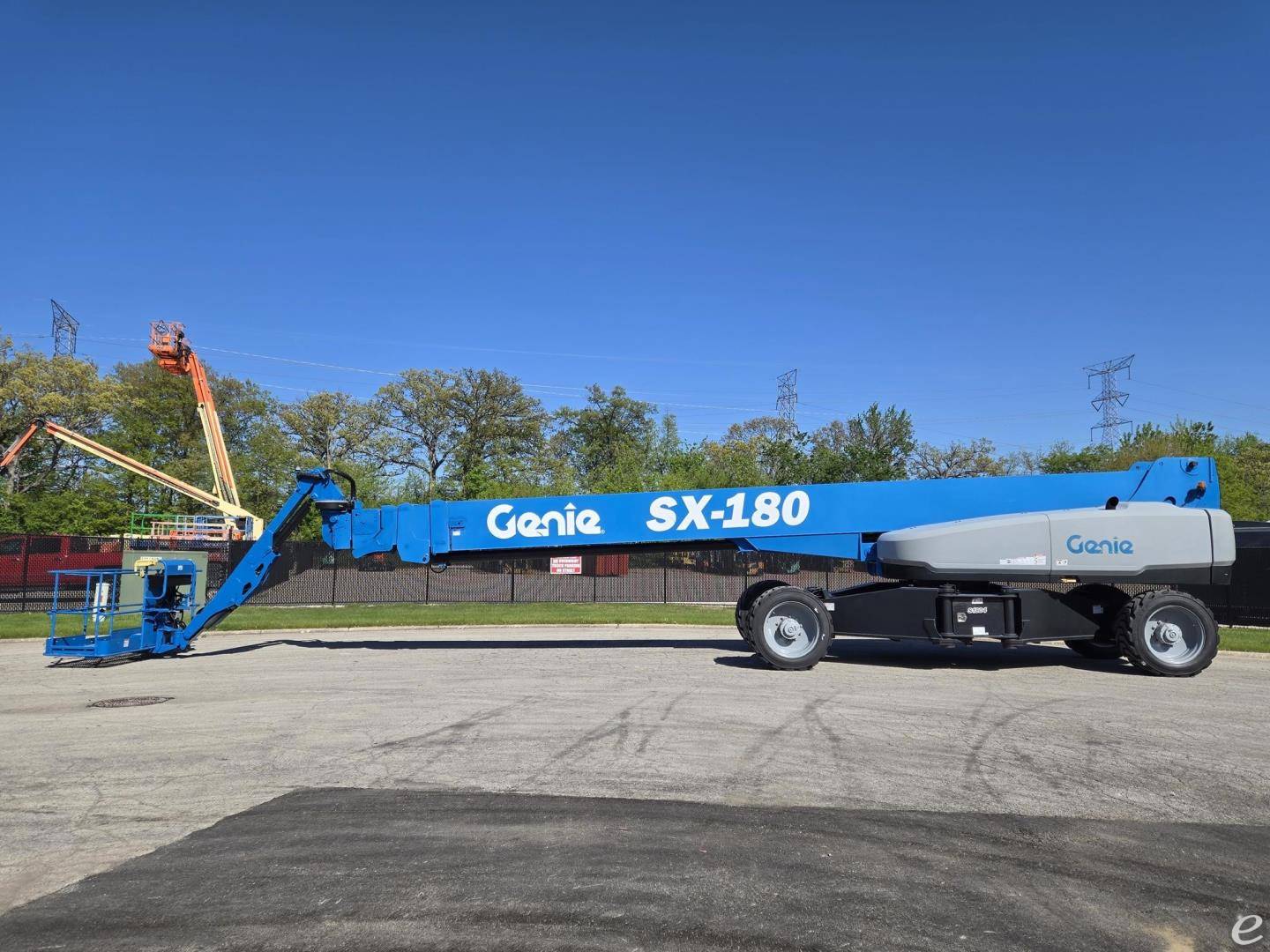

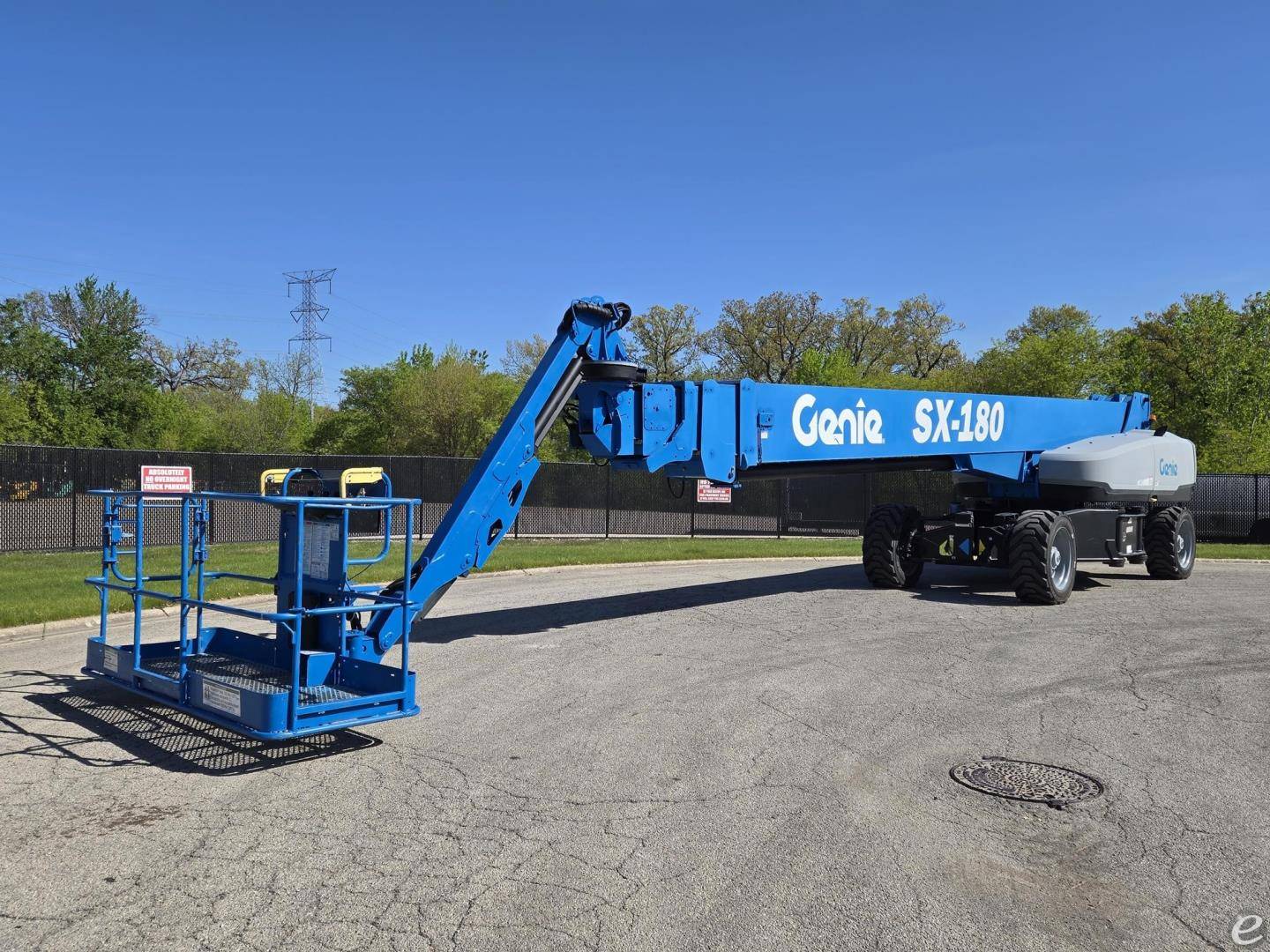

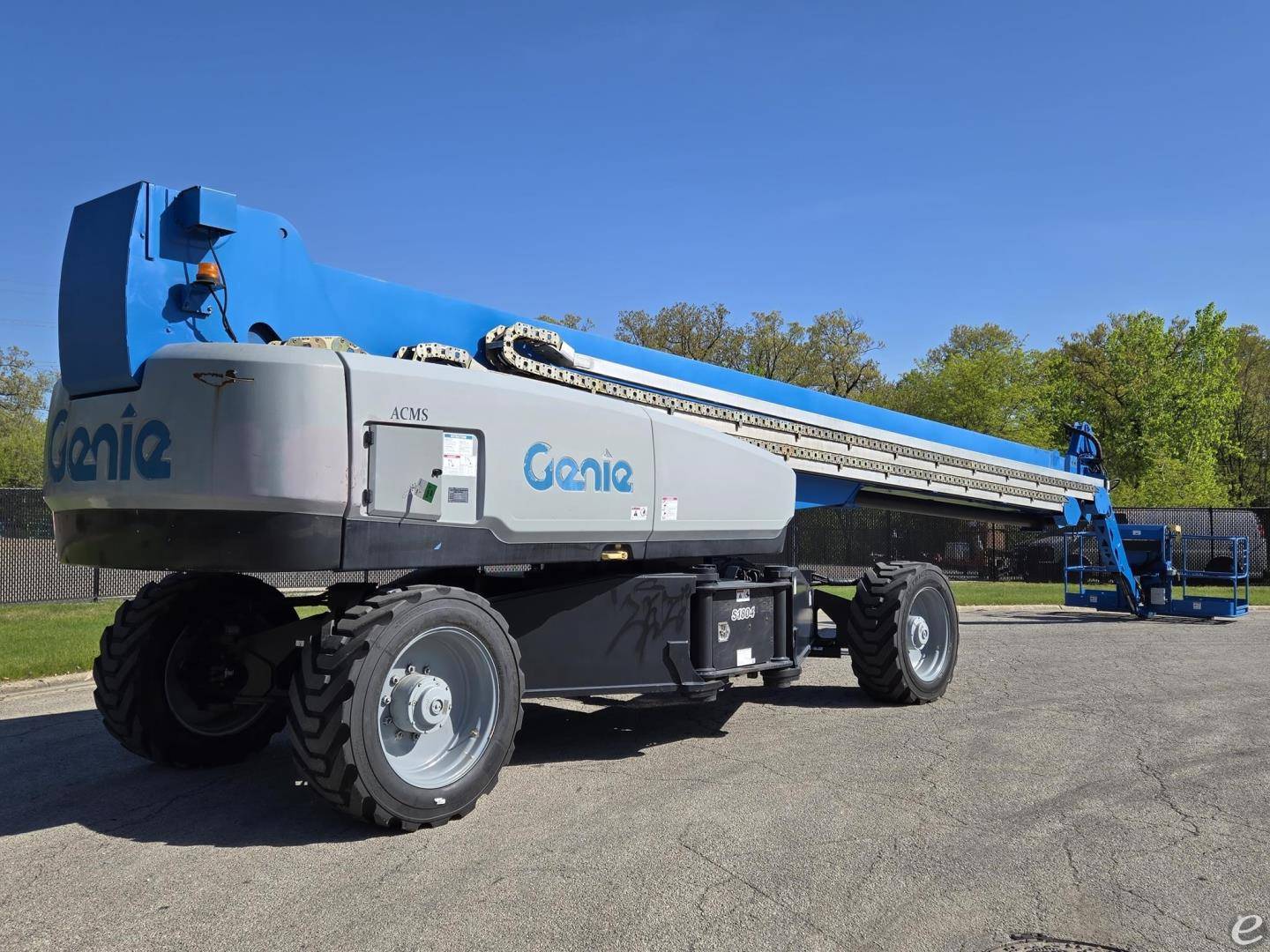

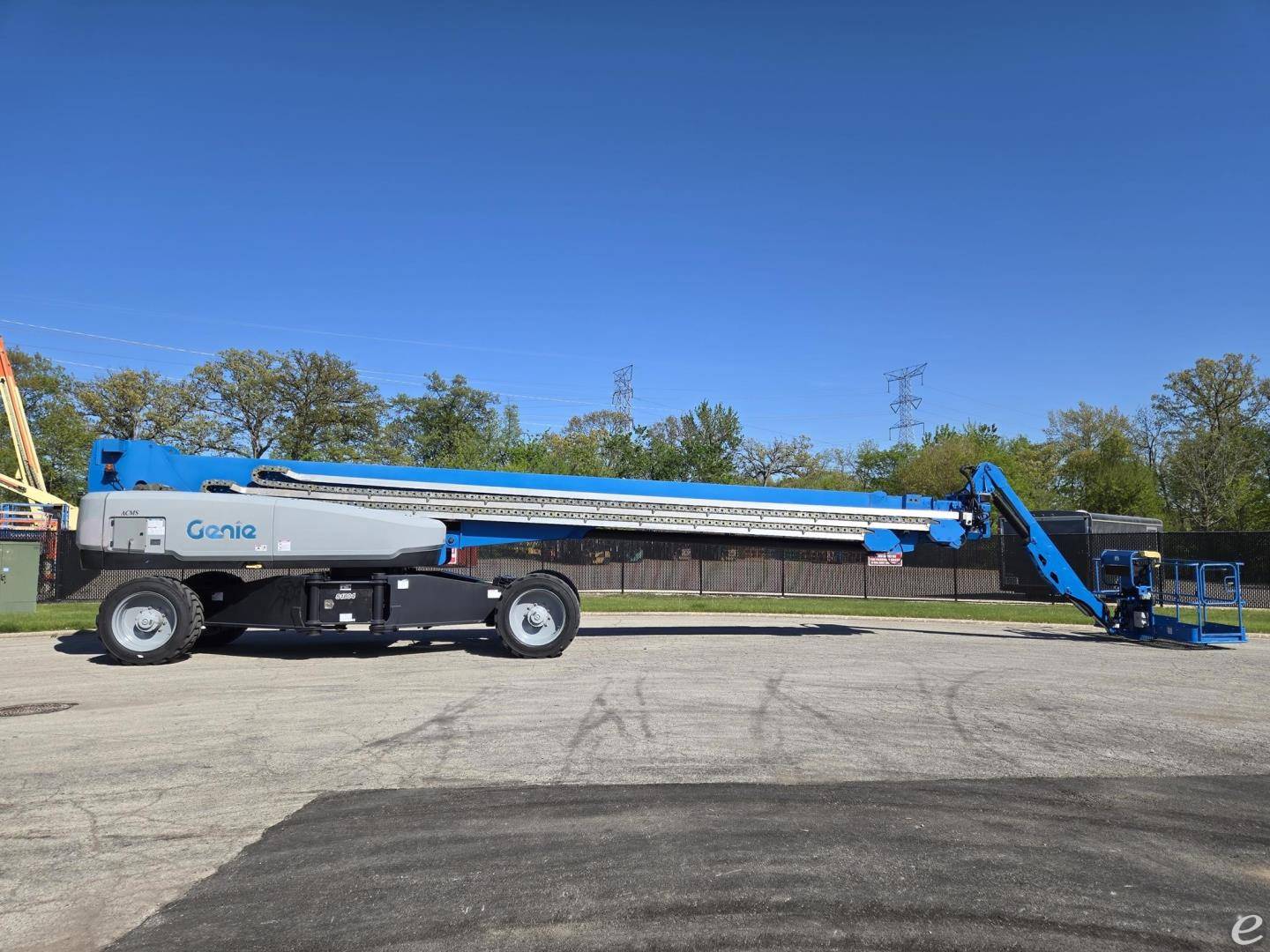

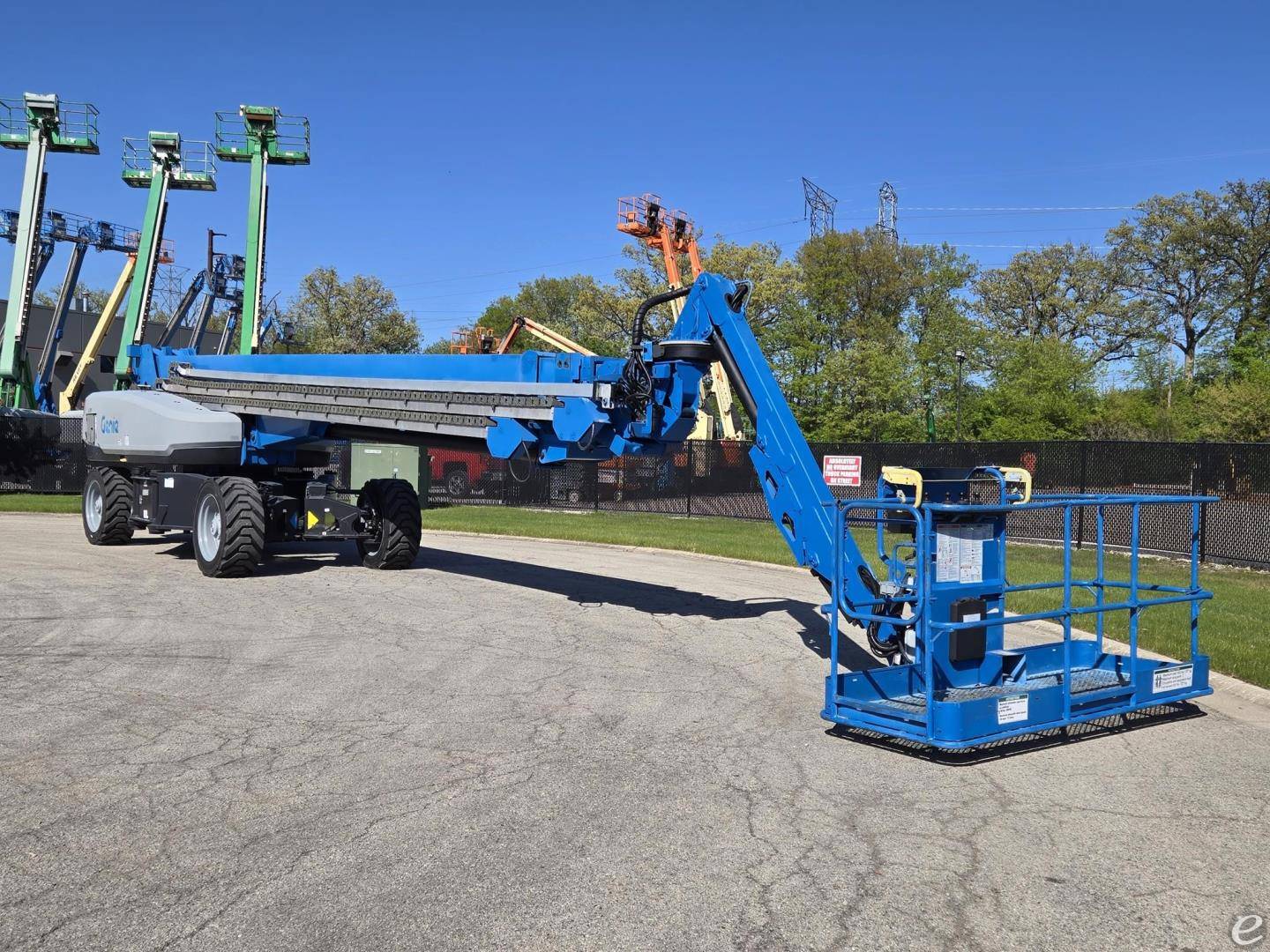

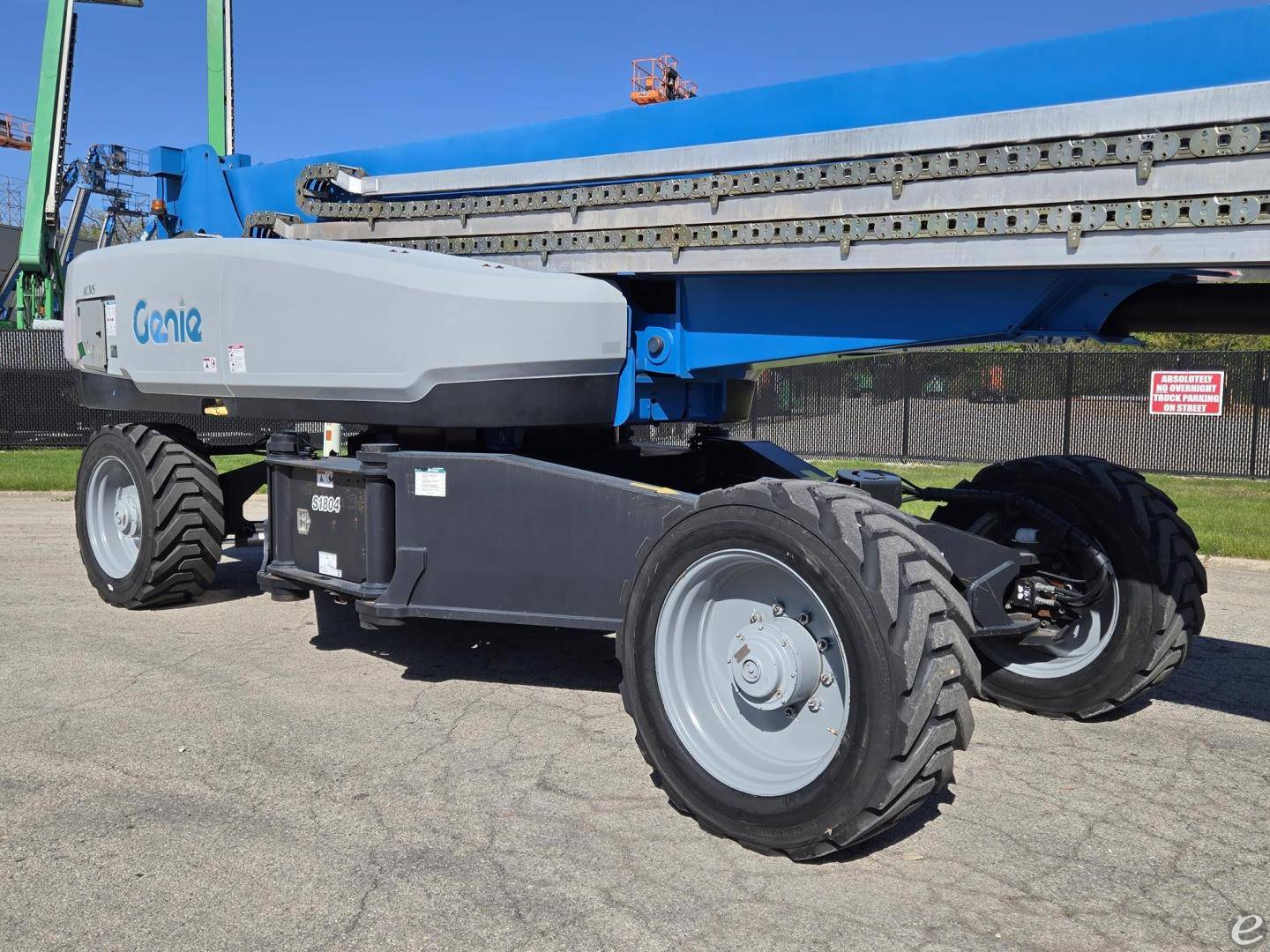

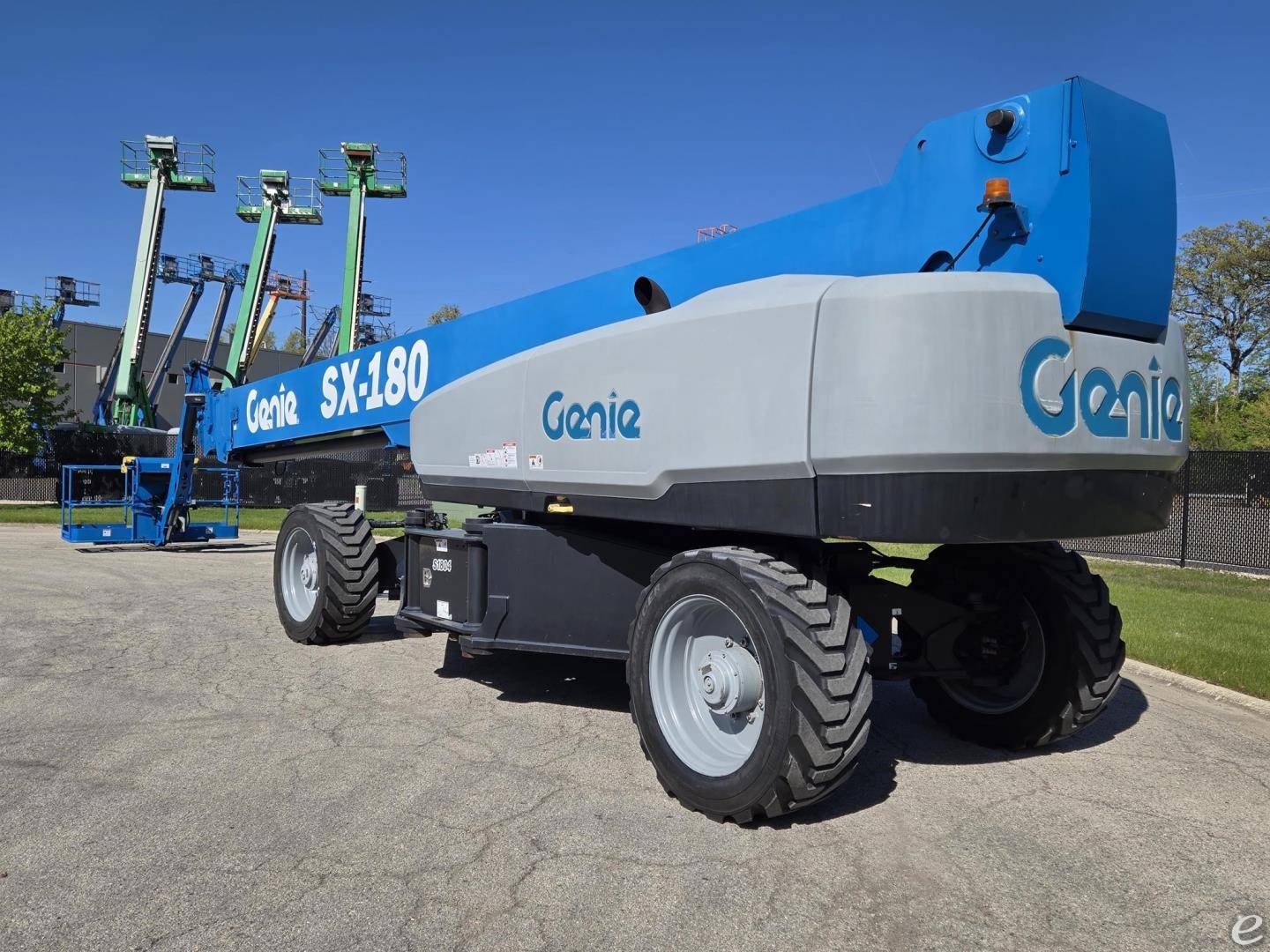

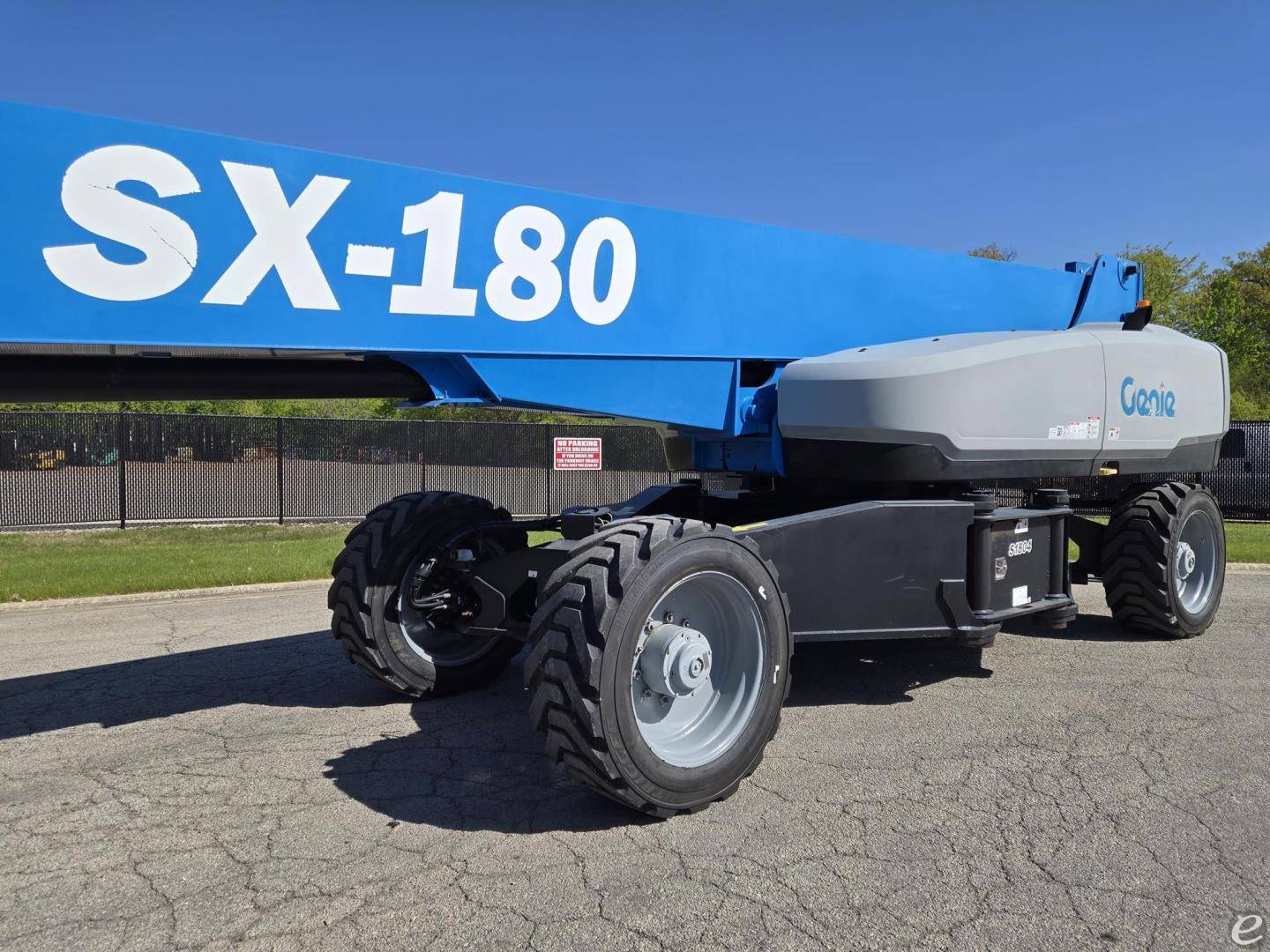

2018 Genie SX180

Diesel Telescopic Boom

Call for priceNew
CONTACT INFO
Name:
Justin Cyrnek
Phone:

ADDRESS
Chicago Industrial Equipment
600 Oakwood Ct
Rockdale, Illinois 60436
ATTRIBUTES
STOCK #:
S1804
YEAR:
2018
Manufacturer:
MODEL #:
Drive:
4WD
SUBCATEGORY:
Height:
ft
FUEL:
Diesel

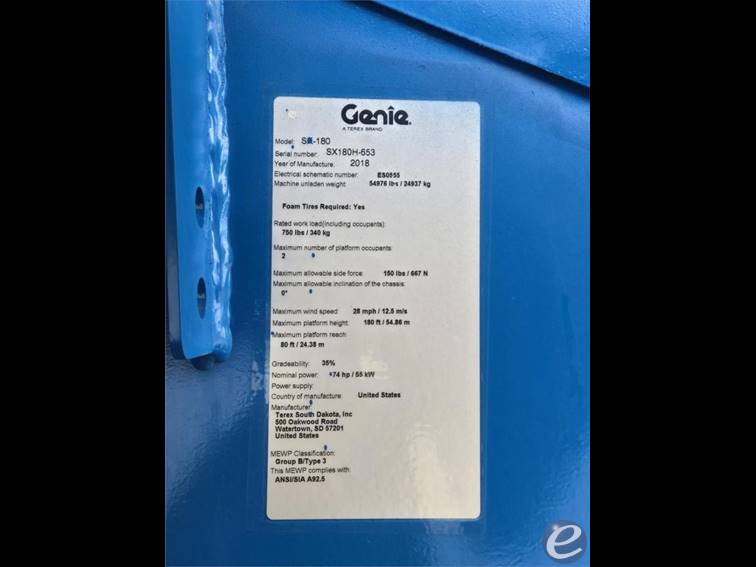

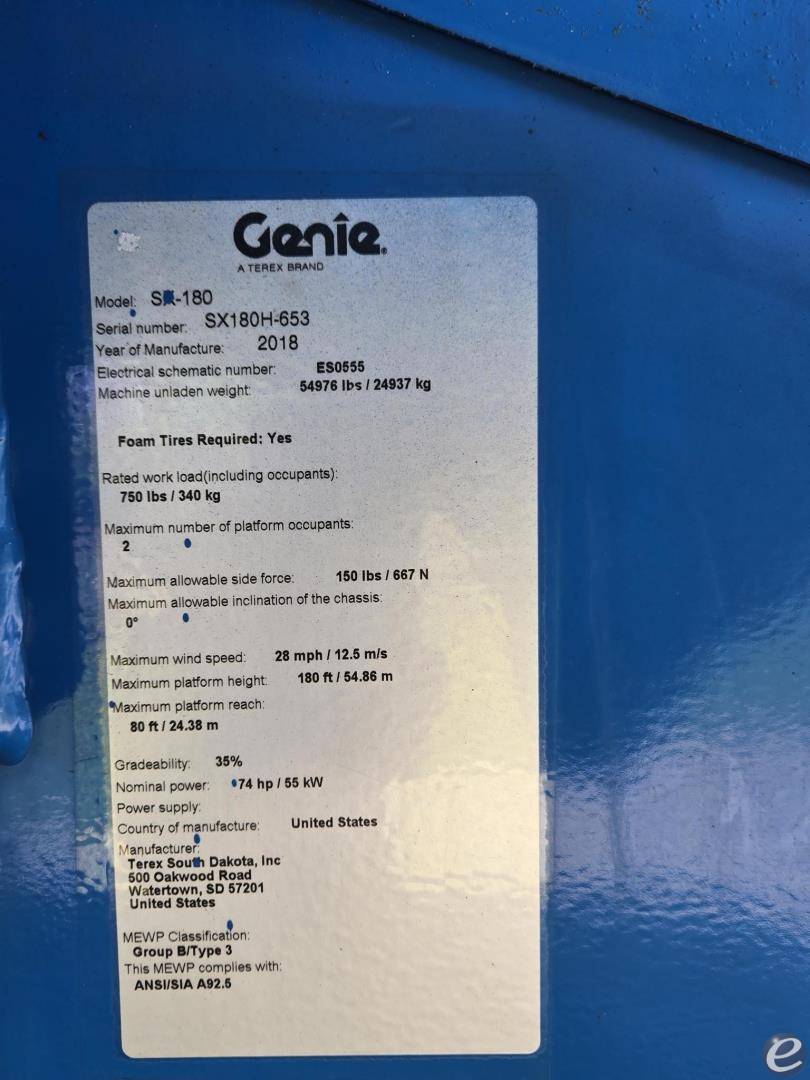

SERIAL #:
SX180H-653
CONDITION:
New
LOCATION:
POST DATE:
11/5/2024
Equipment Description

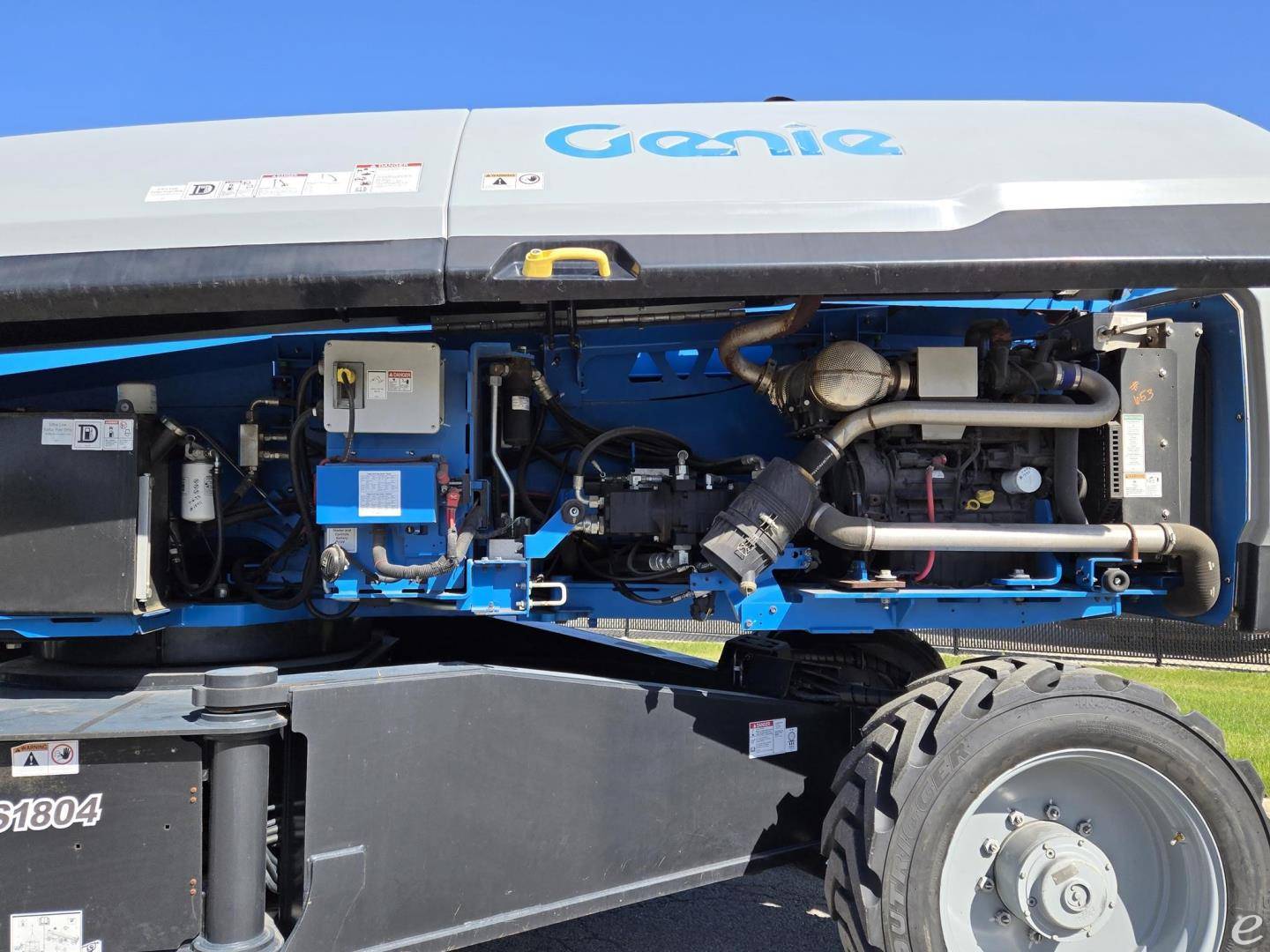

4X4 DEUTZ DIESEL ENGINE 180′ PLATFORM HEIGHT 186′ WORKING HEIGHT 80′ HORIZONTAL REACH 750 LB CAPACITY FOAM FILLED TIRES TELESCOPIC READY TO WORK CONTACT US FOR COMPETITIVE FREIGHT RATES!
  • Platform Height: 180 ft (54.86 m)
  • Working Height: 186 ft (56.69 m)
  • Horizontal Reach: 80 ft (24.38 m)
  • Lift Capacity: 750 lbs (340 kg)

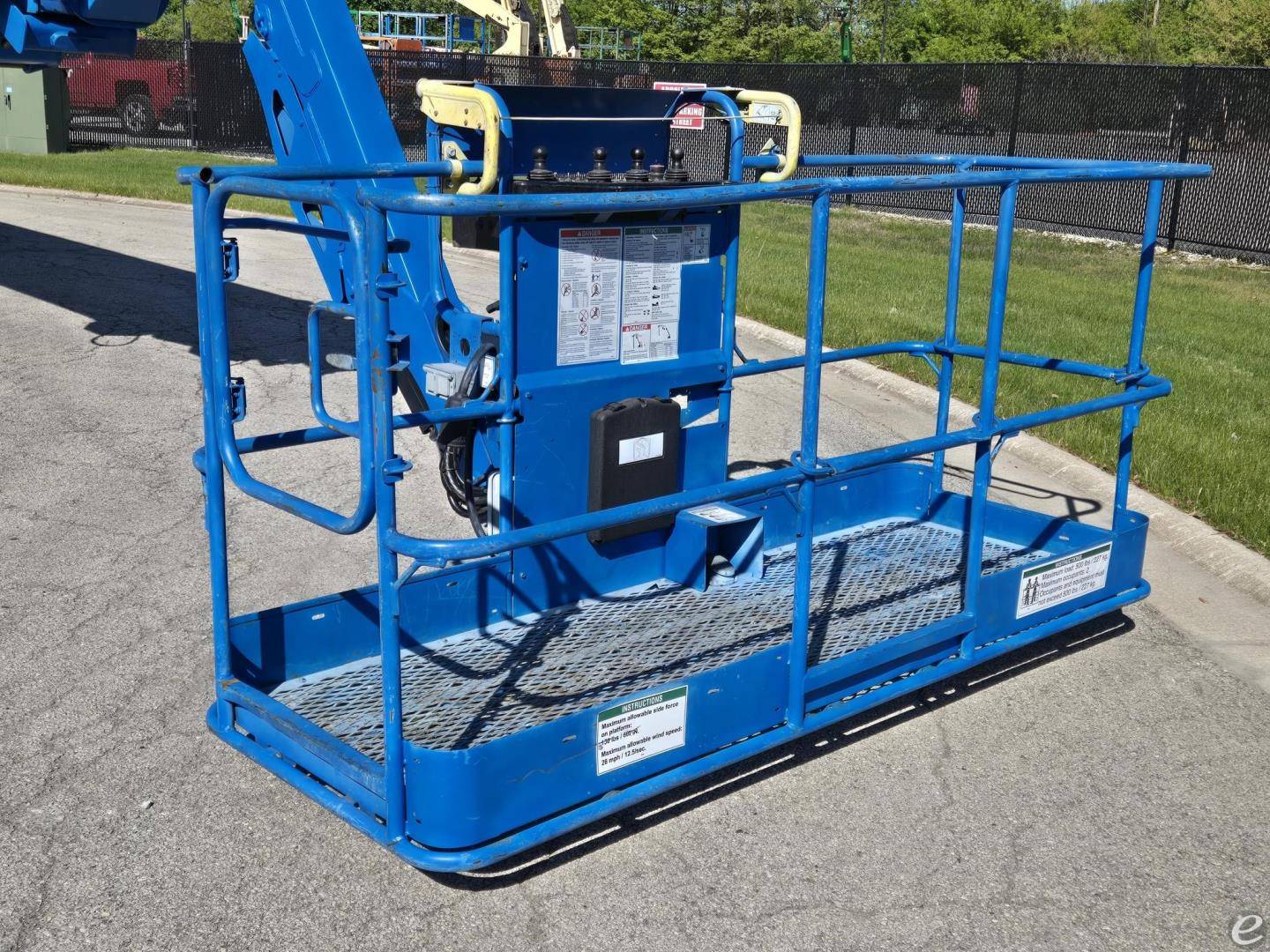

  • Platform Length: 3 ft (0.91 m)
  • Platform Width: 8 ft (2.44 m)
  • Stowed Length: 47 ft 6 in (14.48 m)
  • Stowed Width: 8 ft 2 in (2.49 m)
  • Stowed Height: 10 ft (3.05 m)
  • Wheelbase: 15 ft 10 in (4.83 m)
  • Ground Clearance: 1 ft 3 in (0.37 m)
  • Turning Radius Inside: 11 ft 6 in (3.51 m)
  • Turning Radius Outside: 21 ft 6 in (6.55 m)
  • Drive Speed Stowed: 3.0 mph (4.83 km/h)
  • Drive Speed Raised: 0.25 mph (0.40 km/h)
  • Gradeability: 40%
  • Power Source: 74hp (55.4 kW) Diesel Engine
  • Fuel Tank Capacity: 40 gal (151.42 L)
  • Hydraulic Reservoir: 75 gal (283.91 L)

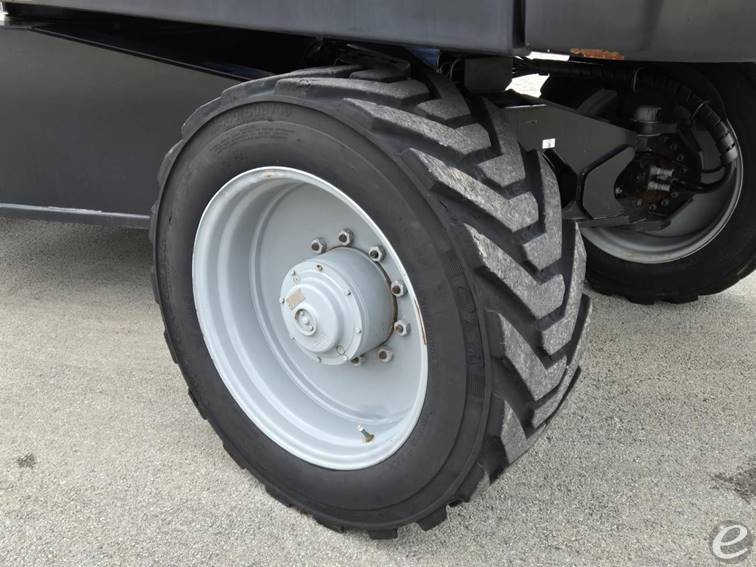

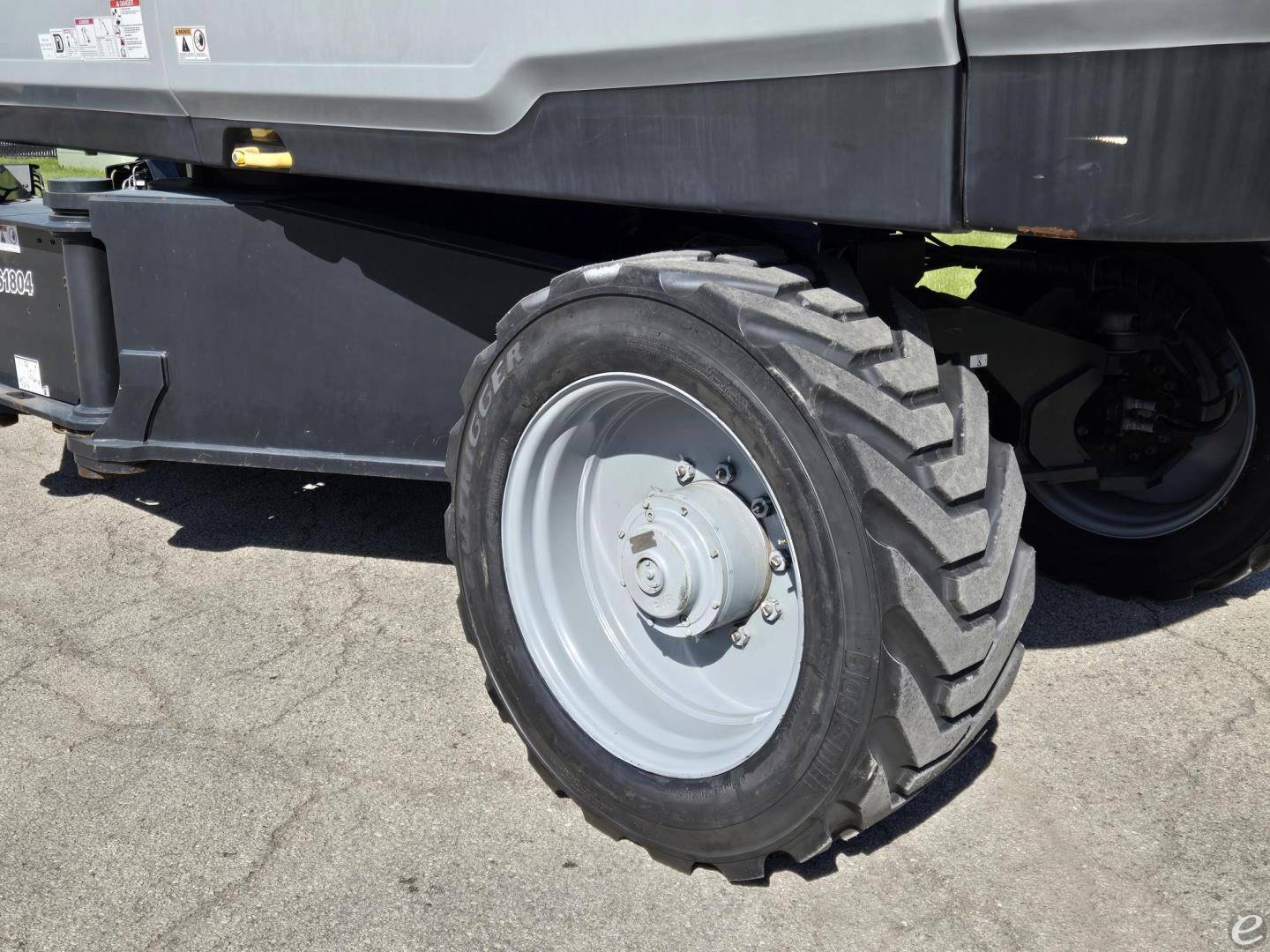

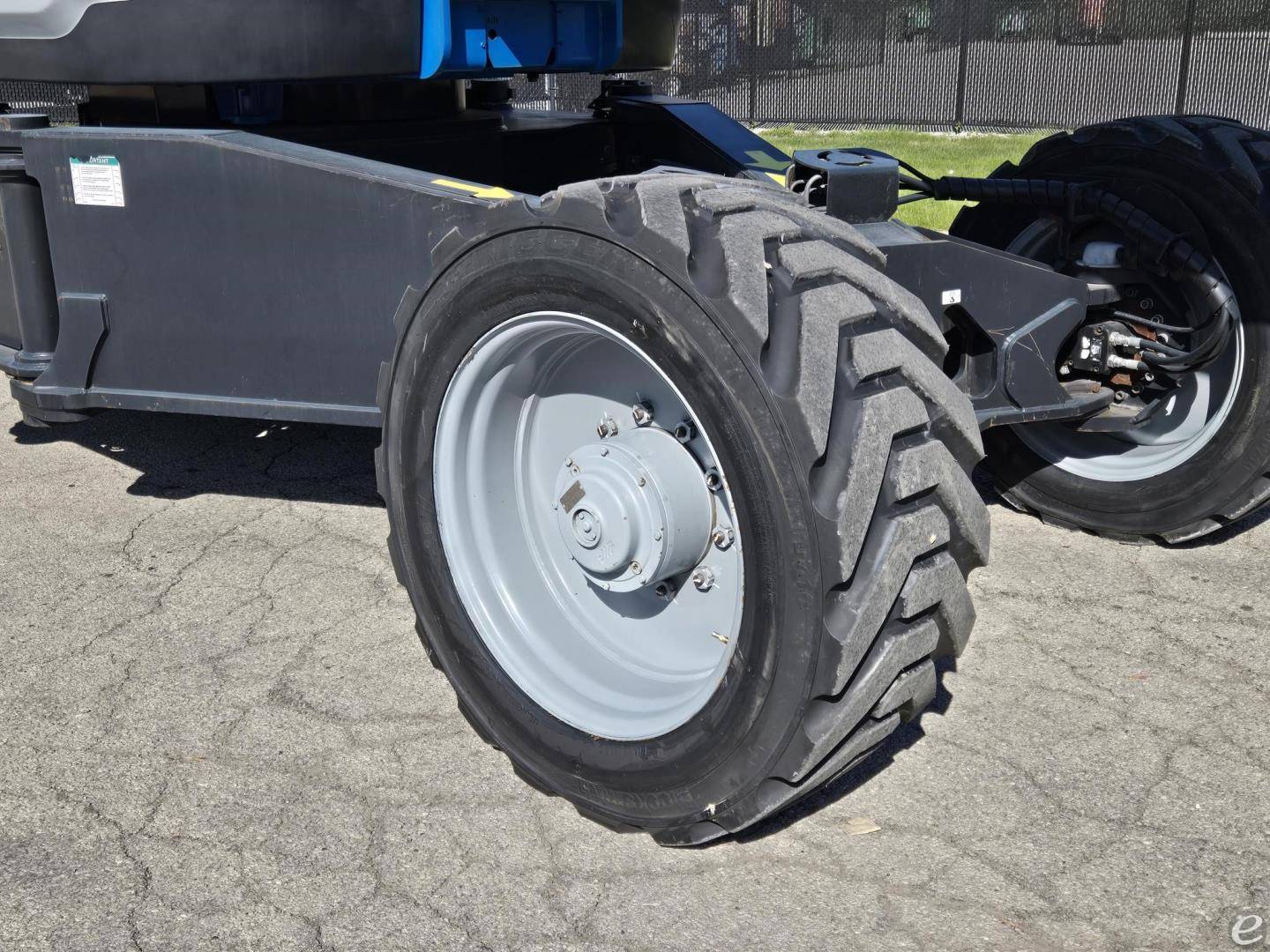

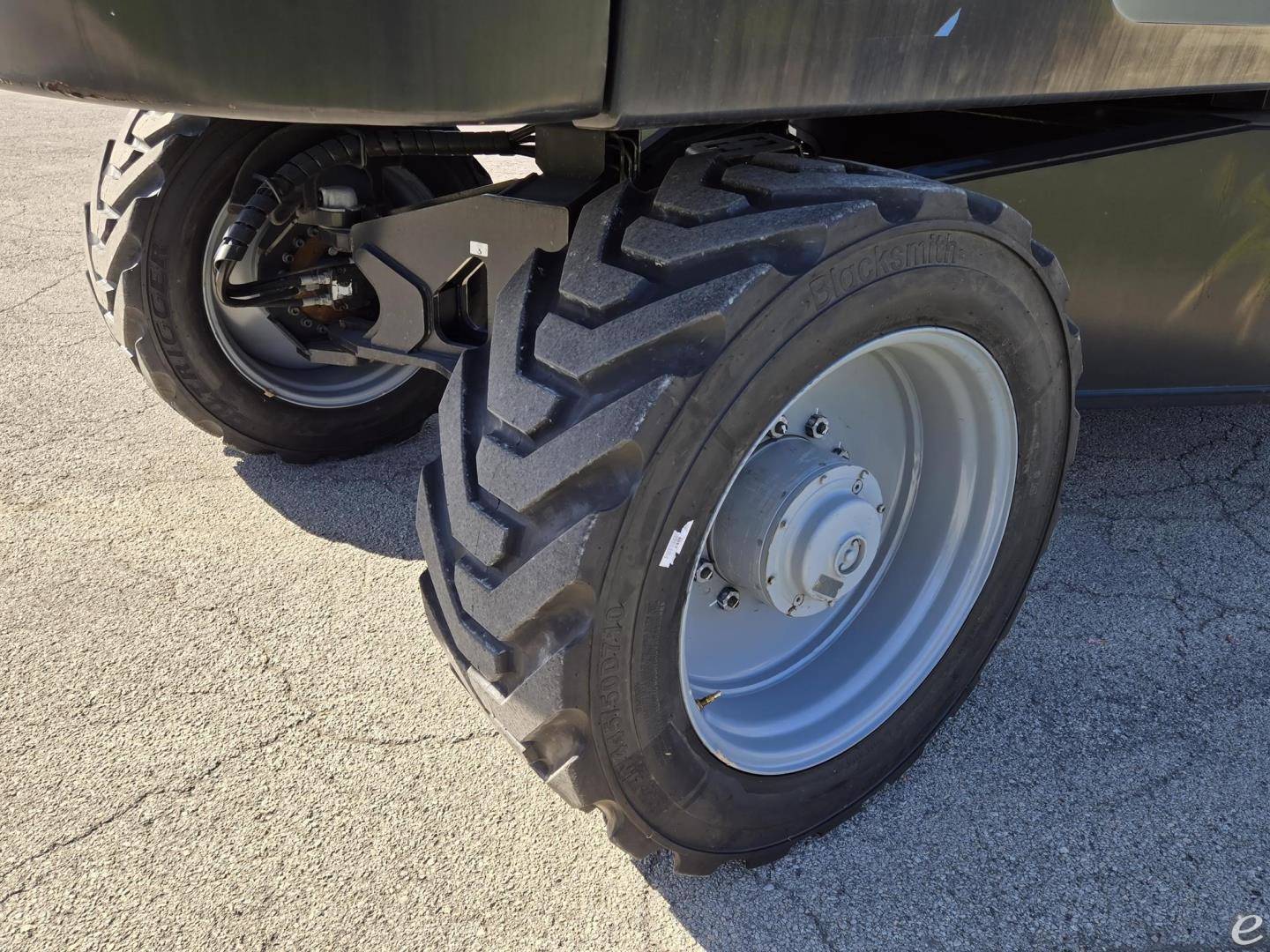

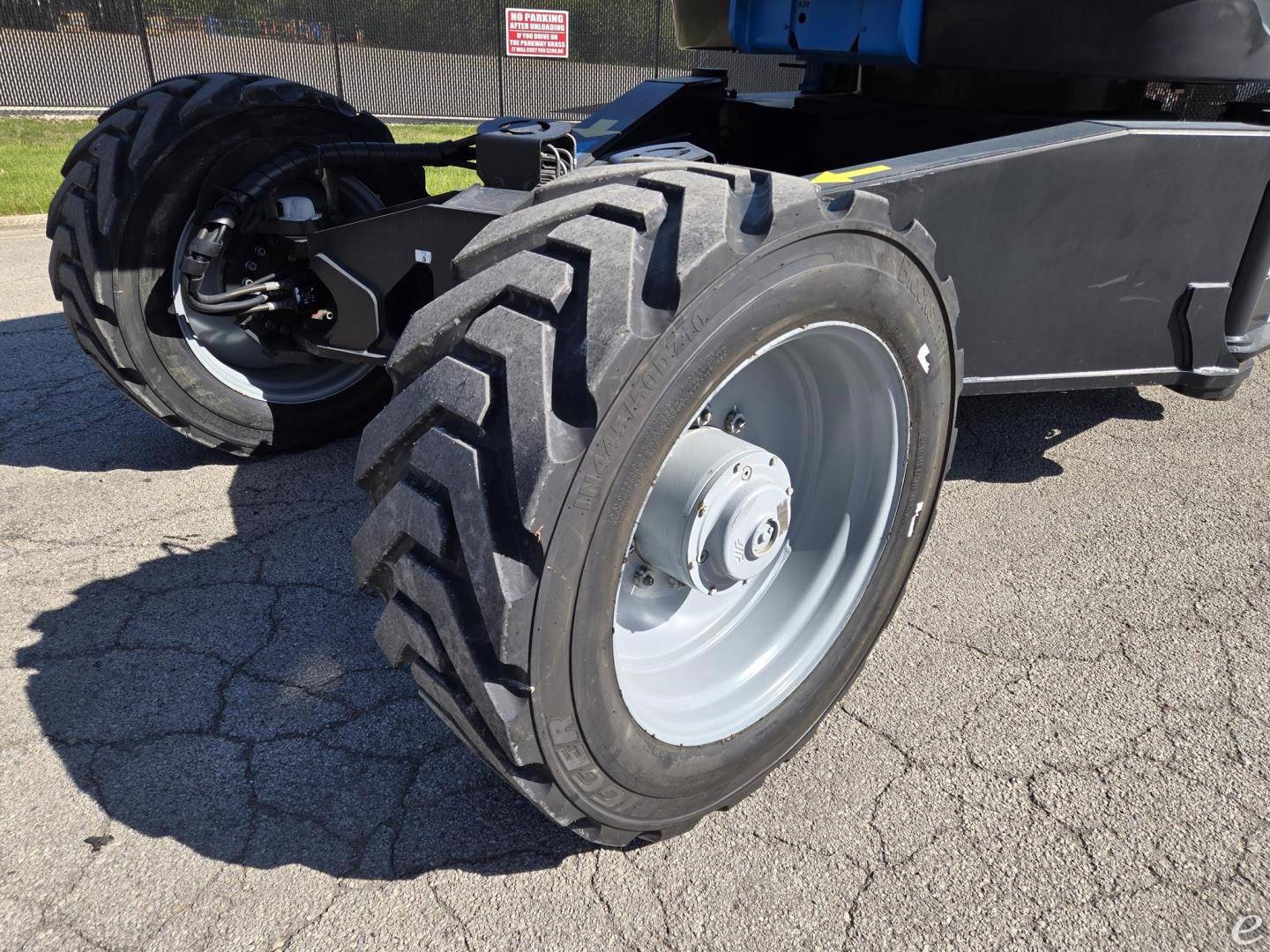

  • Tires: Foam-filled, 18-625, 445/65 D22.5
  • Weight: 54,000 lbs (24,494 kg)
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.
