Equipment Description:

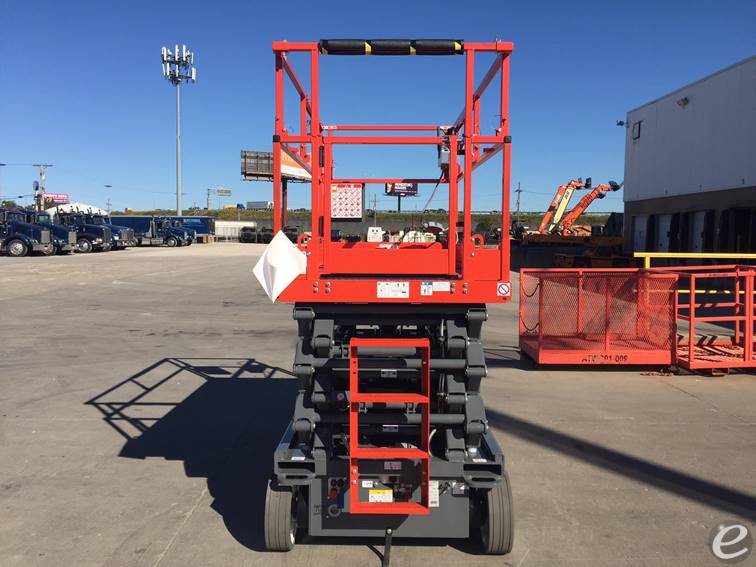

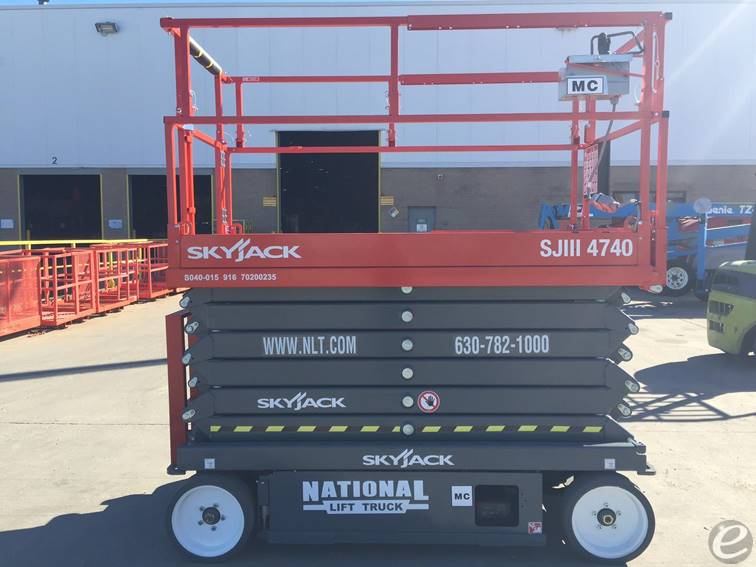

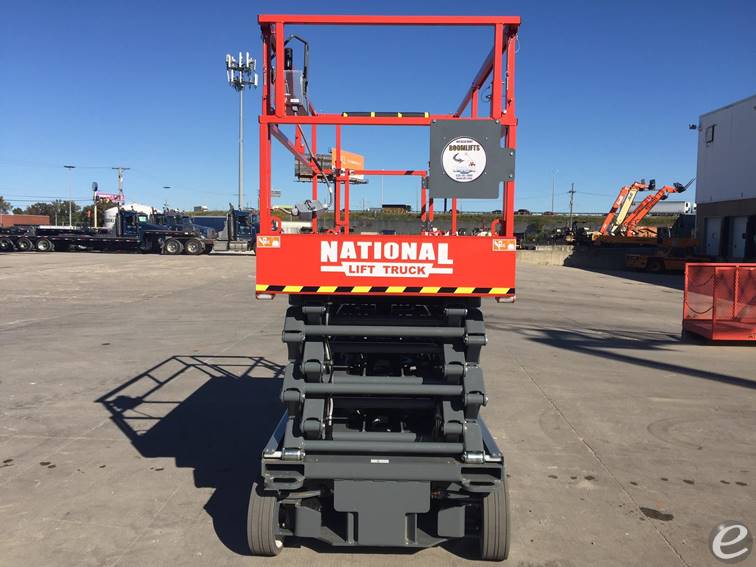

2016 Electric Skyjack SJIII4740 Slab

Call for price

Contact Information

National Lift Truck, Inc.
3333 Mt. Prospect Rd.
Franklin Park, Illinois 60131

CONTACT :

Geoff Dietz

PHONE :

Stock #:

S040-015

YEAR:

2016

Manufacturer:

MODEL #:

Drive:

2WD

SUBCATEGORY:

Height:

40 ft

FUEL:

Electric

CONDITION:

Used

LOCATION:

DESCRIPTION:

(NEW) 40' Scissors Lift w/Extension deck, NM Tires

Equipment Description:

This product was posted on 7/25/2024

Working Height
- Maximum Working Height: 45 ft (13.72 m)
Platform Height
- Maximum Platform Height: 39 ft 6 in (12.04 m)
Dimensions
- Overall Width: 3 ft 10 in (1.17 m)
- Overall Length: 8 ft 2 in (2.49 m)
- Stowed Height (Rails Up): 7 ft 6 in (2.29 m)
- Stowed Height (Rails Down): 6 ft 6 in (1.98 m)
Platform
- Platform Size (Inside): 39 in x 84 in (0.99 m x 2.13 m)
Capacity
- Platform Capacity: 500 lbs (227 kg)
- Extension Deck Capacity: 250 lbs (113 kg)
Power
- Power Source: 24V DC (Four 6V 225Ah batteries)
Performance
- Drive Speed (Stowed): 2.0 mph (3.2 km/h)
- Drive Speed (Raised): 0.7 mph (1.1 km/h)
- Gradeability: 25%
Turning Radius
- Inside: Zero
- Outside: 7 ft 10 in (2.39 m)
Weight
- Machine Weight: 6,670 lbs (3,025 kg)
Other Features

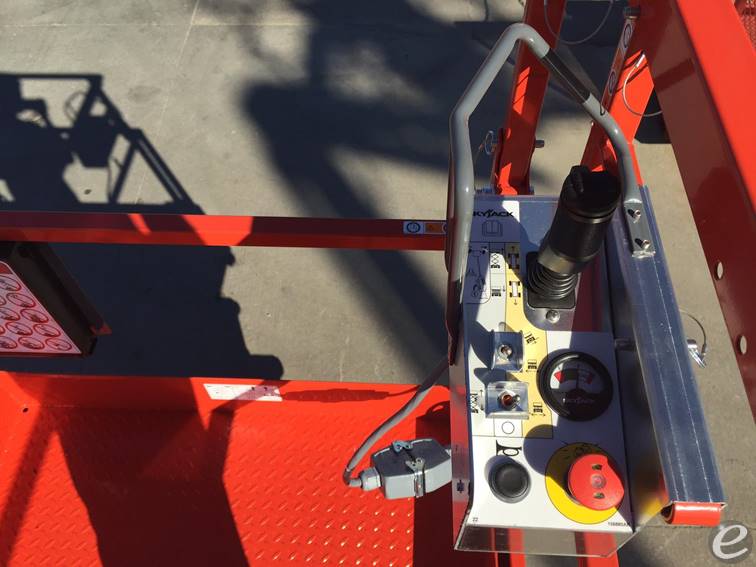

- Proportional Controls
- Solid Rubber, Non-Marking Tires
- Dual Qwik-Fold Rails
