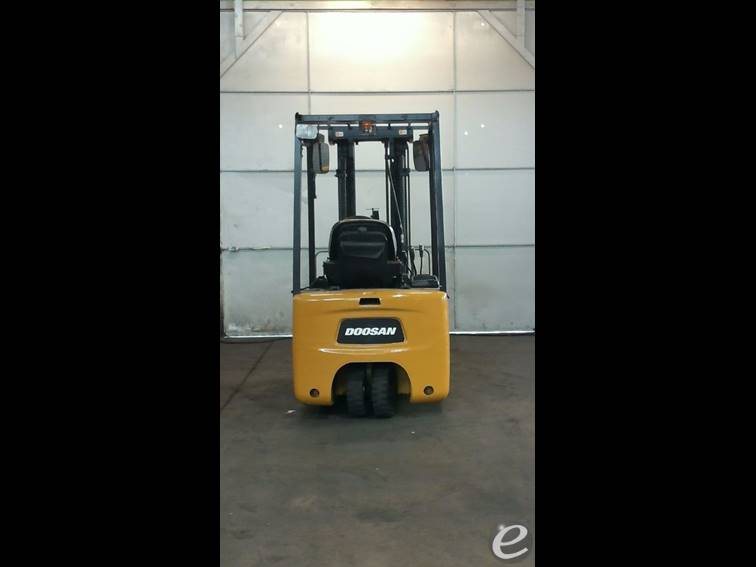

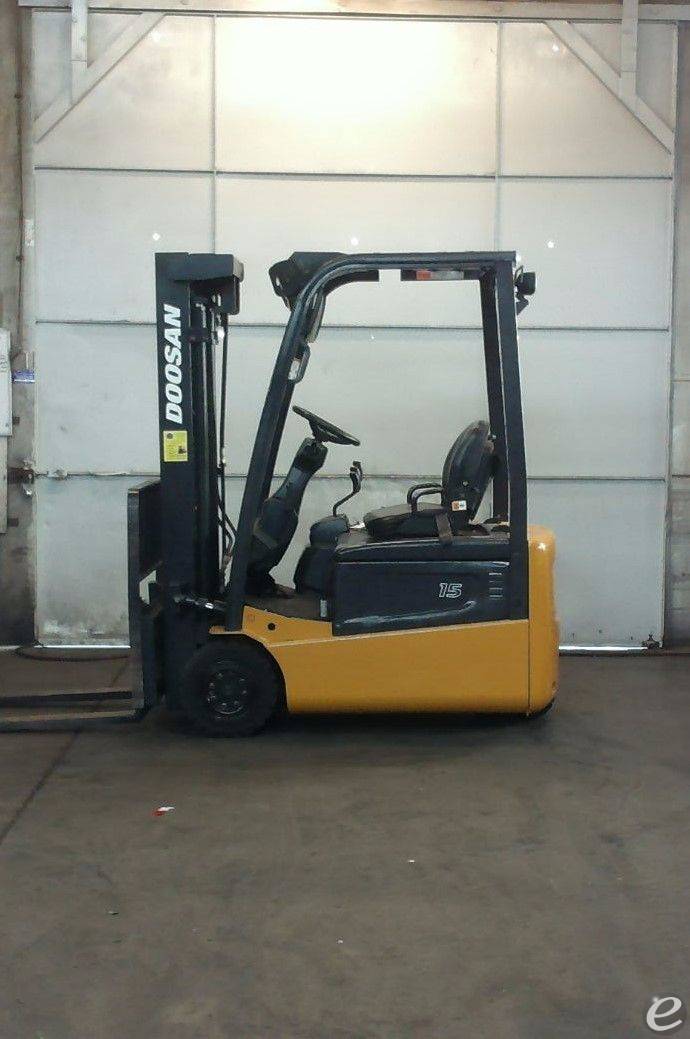

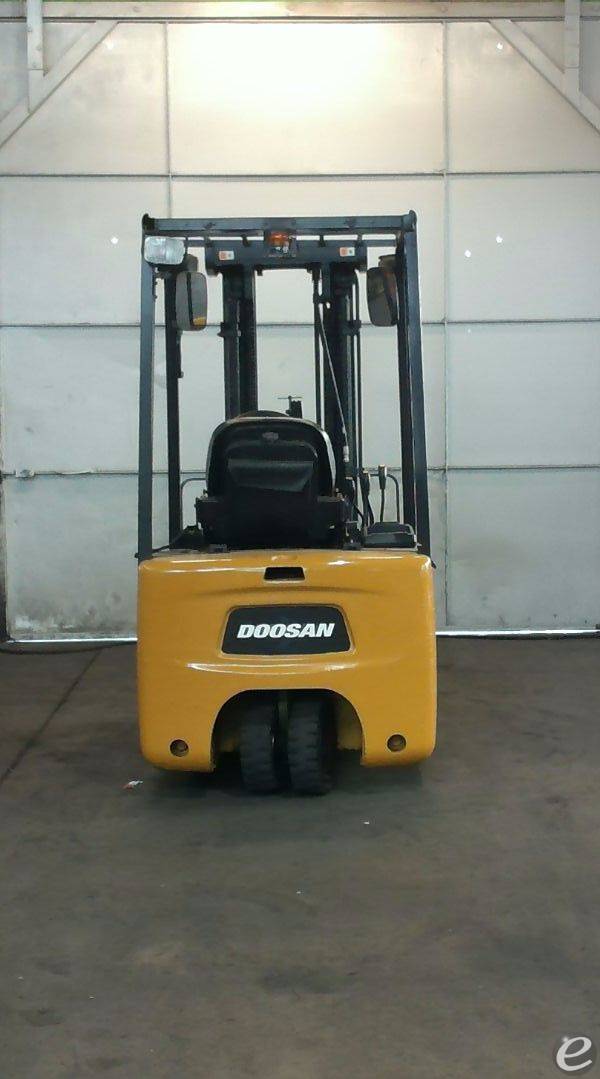

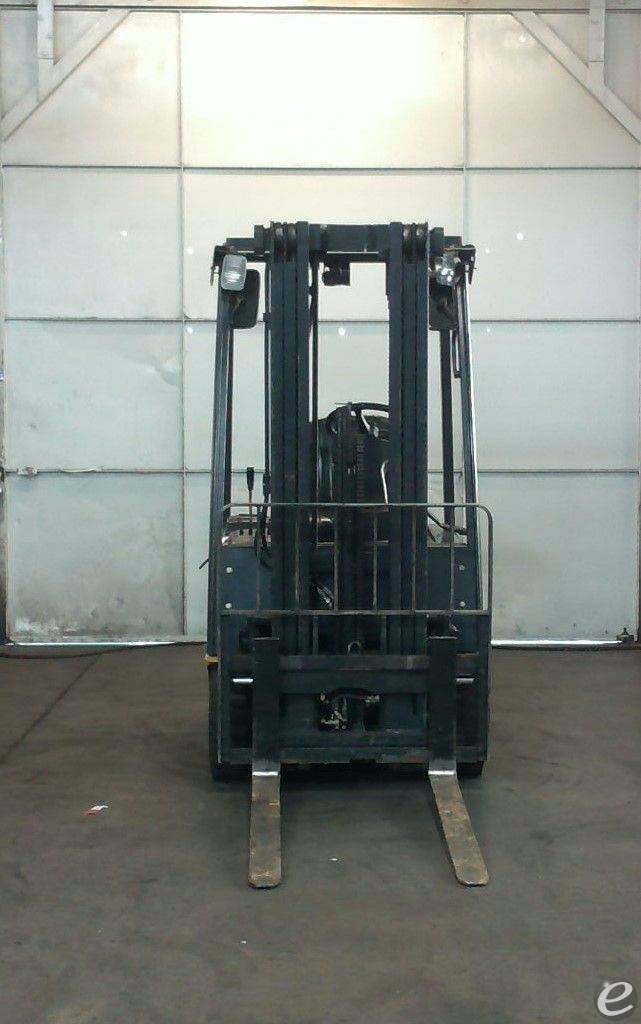

2005 Electric Doosan B15T-5 Electric 3 Wheel Sit Down

$15,900 USD
Contact Information
L.A. Lift Services
4368 Bandini Blvd.
Vernon, California 90058
CONTACT :
Sales Dept.
PHONE :
FAX :
Stock #:
U14024
YEAR:
2005
Manufacturer:
MODEL #:
CAPACITY:
3000
FUEL:
Electric
MAST TYPE:
Three Stage
MAST HEIGHT:
84 / 187 in
SERIAL #:
H4-00125
SIDE SHIFTER:
Yes
CONDITION:
Used
HOUR METER:
13304.9
LOCATION:
DESCRIPTION:
36V Includes New battery
Equipment Description:
  • General Information
    • Model: Doosan B15T-5
    • Type: Electric Counterbalance Forklift
  • Load Capacity
    • Rated Load Capacity: 3,000 lbs (1,500 kg)
    • Load Center: 24 inches (600 mm)
  • Dimensions
    • Overall Length: 116 inches (2,940 mm)
    • Overall Width: 39 inches (990 mm)
    • Overall Height (Mast Lowered): 83 inches (2,110 mm)
    • Overall Height (Mast Extended): 157 inches (3,985 mm)
    • Turning Radius: 69 inches (1,750 mm)
  • Mast
    • Mast Tilt Angle Forward/Backward: 6°/10°
    • Standard Lift Height: 126 inches (3,200 mm)
    • Free Lift Height: 5.1 inches (130 mm)
  • Power
    • Power Source: Electric
    • Voltage: 48V
    • Drive Motor: 5.5 kW
    • Lift Motor: 11 kW
  • Tires
    • Tire Type: Solid Pneumatic
    • Front Tire Size: 18 x 7 - 8
    • Rear Tire Size: 15 x 4.5 - 8
  • Performance
    • Travel Speed (Loaded): 9.3 mph (15 km/h)
    • Lift Speed (Loaded): 63 feet per minute (0.32 m/s)
    • Gradeability (Loaded): 15%
  • Weight
    • Service Weight: 6,100 lbs (2,770 kg)
  • Brakes
    • Service Brake: Hydraulic
    • Parking Brake: Mechanically Actuated Hand Brake
  • Other Features
    • Steering: Hydrostatic Power Steering
    • Operator Seat: Fully Adjustable
    • Battery Compartment: Standard Type
