Equipment Description:

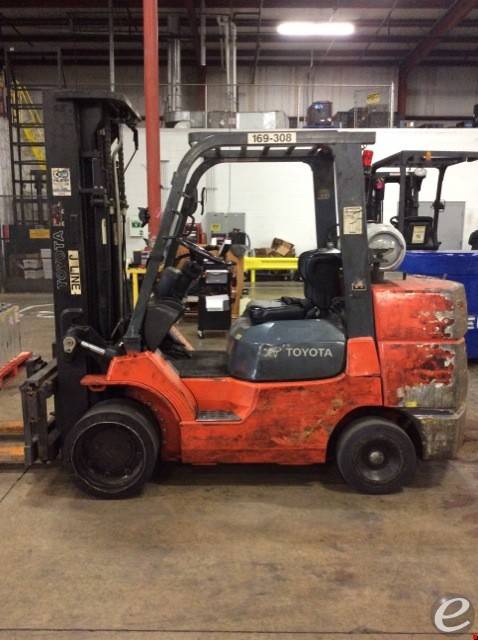

2010 LP Gas Toyota 7FGCU45 Cushion Tire 4 Wheel Sit Down (Indoor Warehouse)

Call for price

Contact Information

Heavy Lift Sales, Rentals & Leasing
1967 Wehrle Dr.
Buffalo, New York 14221

CONTACT :

Sales Department

PHONE :

FAX :

Stock #:

5085172

YEAR:

2010

Manufacturer:

MODEL #:

CAPACITY:

9700

FUEL:

LP Gas

SUBCATEGORY:

MAST TYPE:

Three Stage

MAST HEIGHT:

92 / 187 in

CONDITION:

Used

LOCATION:

N/A [14221]

Equipment Description:

This product was posted on 10/14/2024

Engine
- Engine Type: Toyota 4Y
- Fuel Type: LPG
- Horsepower: Approximately 90 HP
- Number of Cylinders: 4
Performance
- Load Capacity: Approximately 10,000 lbs (4,500 kg)
- Max Travel Speed (Unloaded): Around 11.5 mph (18.5 km/h)
- Lift Speed (Loaded): Approximately 98 feet/min (0.50 m/s)
- Gradeability: 20%
Dimensions
- Overall Length (with Forks): Approximately 147.4 inches (3,744 mm)
- Overall Width: About 55.9 inches (1,420 mm)
- Overall Height (Mast Lowered): Around 95.9 inches (2,435 mm)
- Wheelbase: Approximately 78.7 inches (2,000 mm)
- Minimum Outside Turning Radius: Approx. 98 inches (2,490 mm)
Weight
- Total Approximate Weight: 15,000 lbs (6,804 kg)
Brakes
- Service Brake: Hydraulic
- Parking Brake: Manual
Tire Type
- Front Tires: Cushion
- Rear Tires: Cushion
Hydraulic System
- Hydraulic Pressure: Approximately 3,000 psi (20.7 MPa)
Forks
- Standard Length: Approximately 48 inches (1,219 mm)
