Equipment Description:

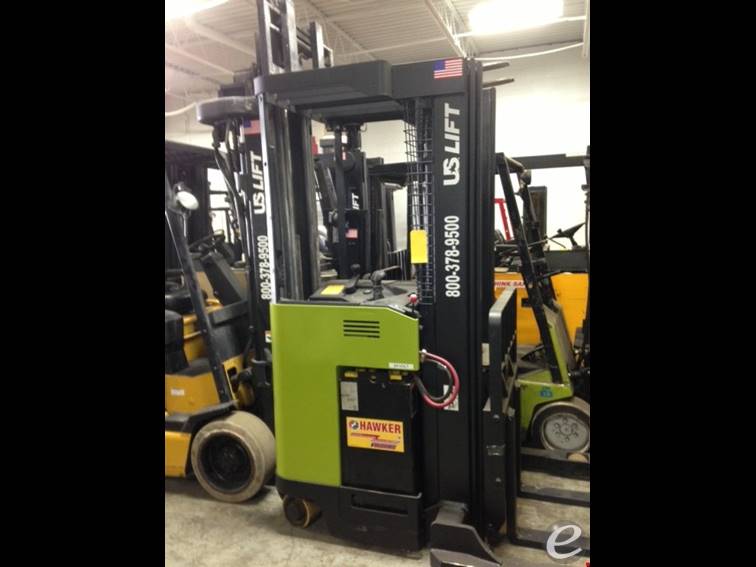

Electric Clark NPR20 Electric Narrow Aisle Single Reach

Call for price

Contact Information

US Lift & Warehouse Equipment
PO Box 91976
Elk Grove Village, Illinois 60009

CONTACT :

Kelly

PHONE :

FAX :

Stock #:

18021

Manufacturer:

MODEL #:

CAPACITY:

4000

FUEL:

Electric

SUBCATEGORY:

MAST TYPE:

Three Stage

MAST HEIGHT:

95 / 210 in

SERIAL #:

NPR345-0343-9431FB

CONDITION:

Used

LOCATION:

Equipment Description:

This product was posted on 8/12/2024

General Specifications
- Model: Clark NPR20
- Type: Reach Truck
- Capacity: 4,000 lbs (1,814 kg)
- Power Type: Electric
Dimensions
- Overall Length: 93.3 inches (2,370 mm)
- Overall Width: 47.2 inches (1,200 mm)
- Height to Overhead Guard: 88.8 inches (2,255 mm)
- Wheelbase: 57 inches (1,448 mm)
Performance
- Travel Speed: Up to 7.5 mph (12 km/h)
- Lift Speed (Loaded/Unloaded): 37.4 ft/min / 58.9 ft/min (11.4 m/min / 18 m/min)
- Lowering Speed (Loaded/Unloaded): 46.8 ft/min / 42.1 ft/min (14.3 m/min / 12.8 m/min)
Battery and Electrical
- Battery Voltage: 24V
- Battery Capacity: 840 Ah
- Electrical System: AC
Mast
- Mast Type: Triplex
- Maximum Lift Height: 236 inches (5,994 mm)
- Mast Tilting: Forward 3°, Backward 5°
Tires
- Tire Type: Polyurethane
- Drive Tire Size: 12 inches (305 mm)
- Load Wheel Size: 8 inches (203 mm)
Steering and Controls
- Steering Type: Electric power steering
- Control Type: Multi-function control handle
Safety Features
- Operator Presence Sensing System
- Automatic Speed Reduction
- Four-Point Stance for Stability
