Equipment Description:

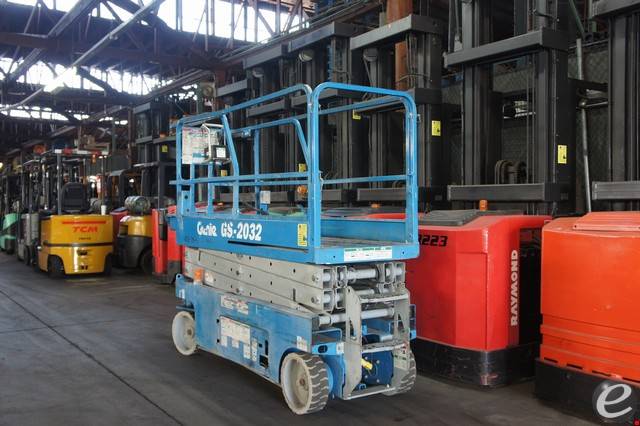

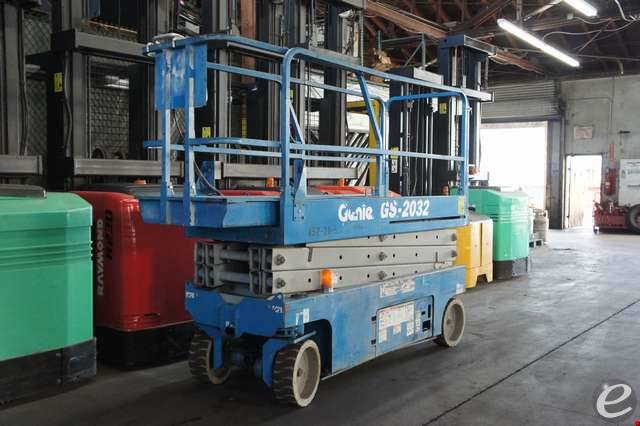

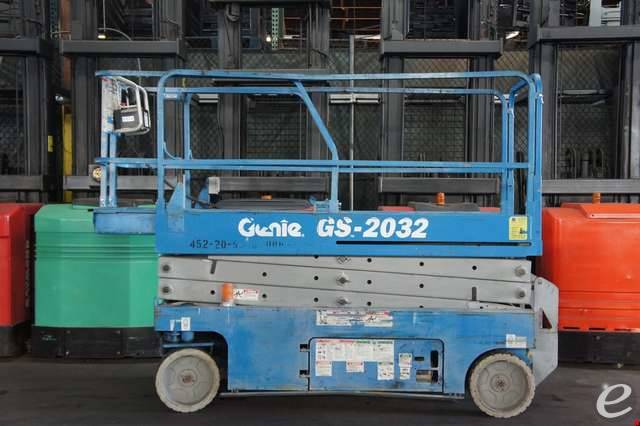

Electric Genie GS-2032 Slab

$8,900 USD

Contact Information

L.A. Lift Services
4368 Bandini Blvd.
Vernon, California 90058

CONTACT :

Sales Dept.

PHONE :

FAX :

Stock #:

U08081

Manufacturer:

MODEL #:

Drive:

2WD

SUBCATEGORY:

Height:

20 ft

FUEL:

Electric

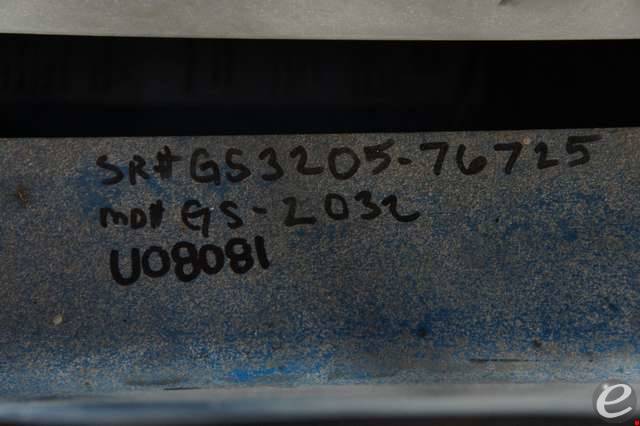

SERIAL #:

GS3205-76725

CONDITION:

Used

LOCATION:

DESCRIPTION:

*24V

Equipment Description:

This product was posted on 7/22/2024

Working Height
- Max Working Height: 25 ft (7.80 m)
Platform Height
- Max Platform Height: 19 ft (5.80 m)
Dimensions
- Length: 8 ft 2 in (2.49 m)
- Width: 2 ft 8 in (0.81 m)
- Height (Rails Up): 7 ft 2 in (2.20 m)
- Height (Rails Down): 5 ft 11 in (1.72 m)
Platform
- Platform Length: 7 ft 6 in (2.26 m)
- Platform Width: 2 ft 6 in (0.76 m)
- Platform Extension: 3 ft (0.91 m)
Capacity
- Lift Capacity: 800 lbs (363 kg)
- Extension Platform Capacity: 300 lbs (136 kg)
Power
- Power Source: 24 V DC (four 6 V 225 Ah batteries)
- Power Units: 2.5 hp (1.5 kW) hydraulic motor
Drive Speed
- Drive Speed (Stowed): 2.5 mph (4.0 km/h)
- Drive Speed (Raised): 0.5 mph (0.8 km/h)
Gradeability
- Gradeability: 30%
Turning Radius
- Inside Turning Radius: Zero
- Outside Turning Radius: 8 ft 10 in (2.68 m)
Weight
- Machine Weight: 3,617 lbs (1,641 kg)
Tires
- Tires: Non-marking, solid rubber
- Size: 15 x 5 in
Hydraulic System
- Hydraulic Tank Capacity: 3.6 gal (13.5 l)
