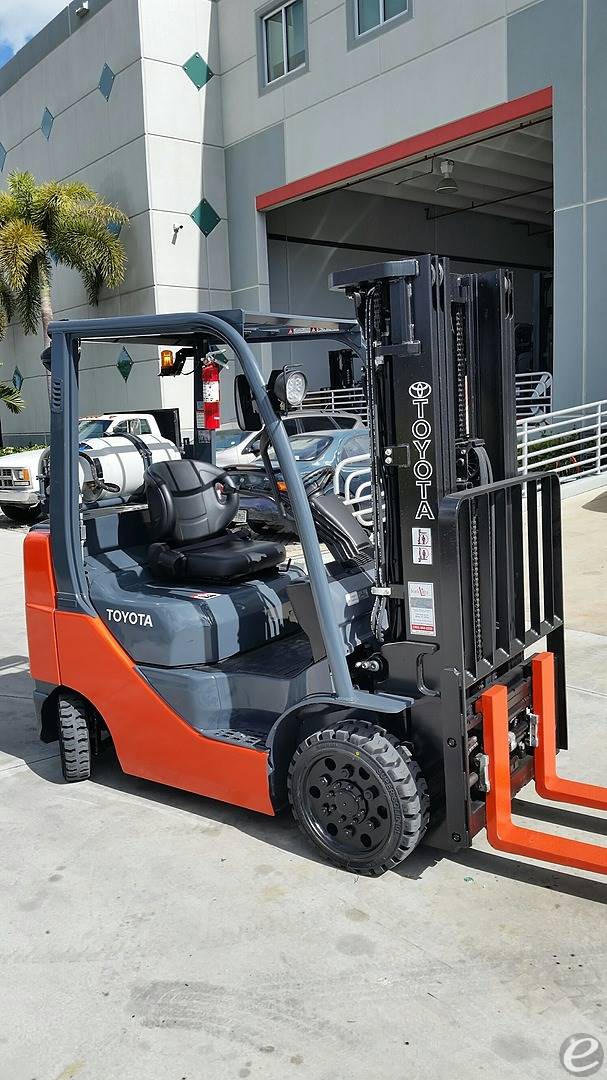

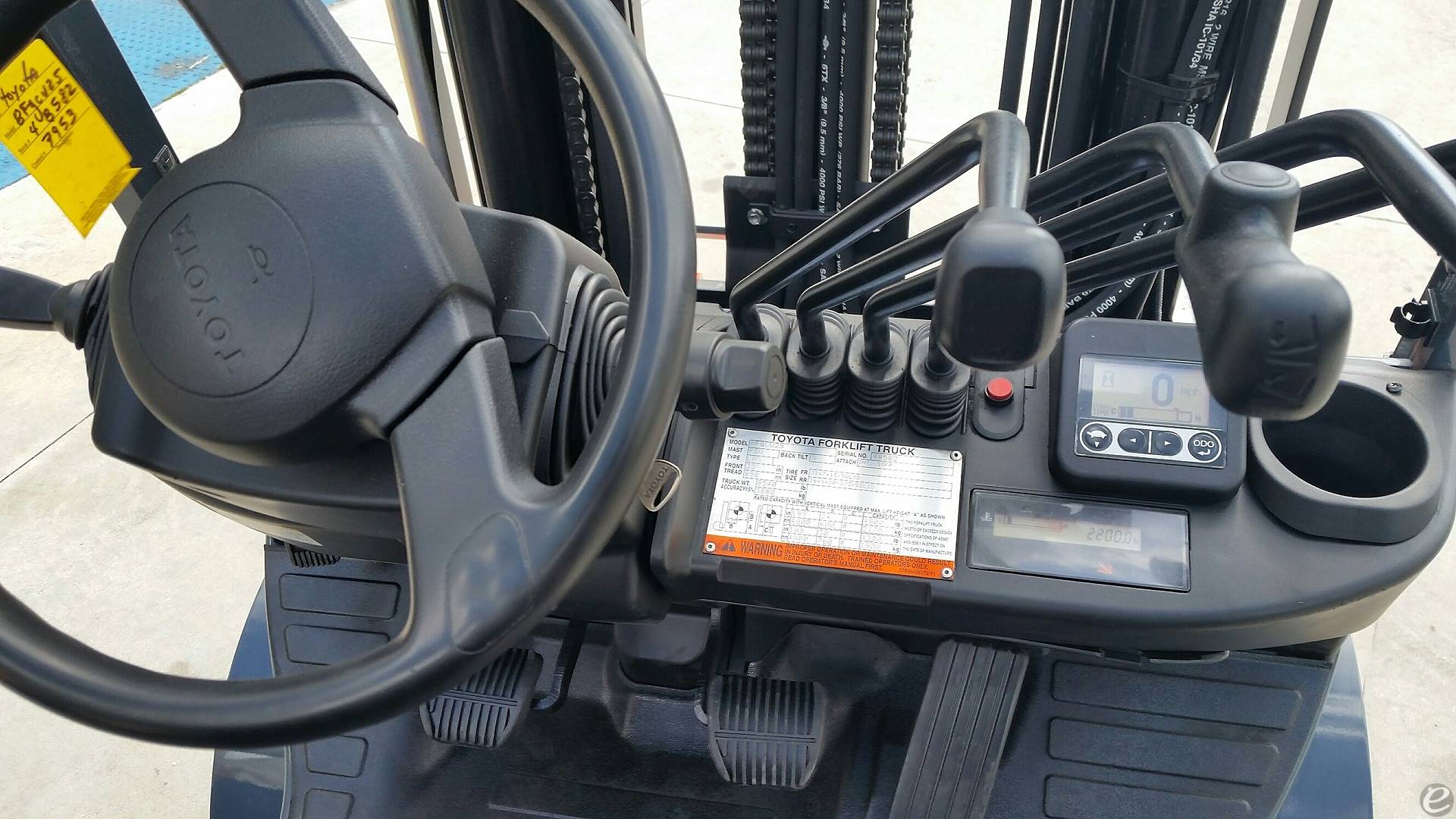

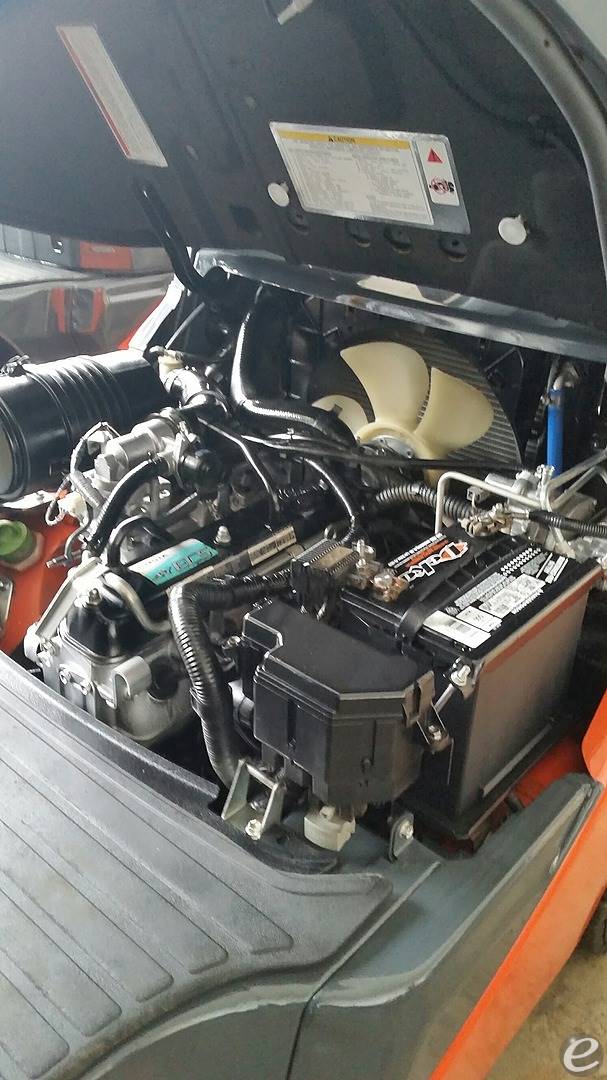

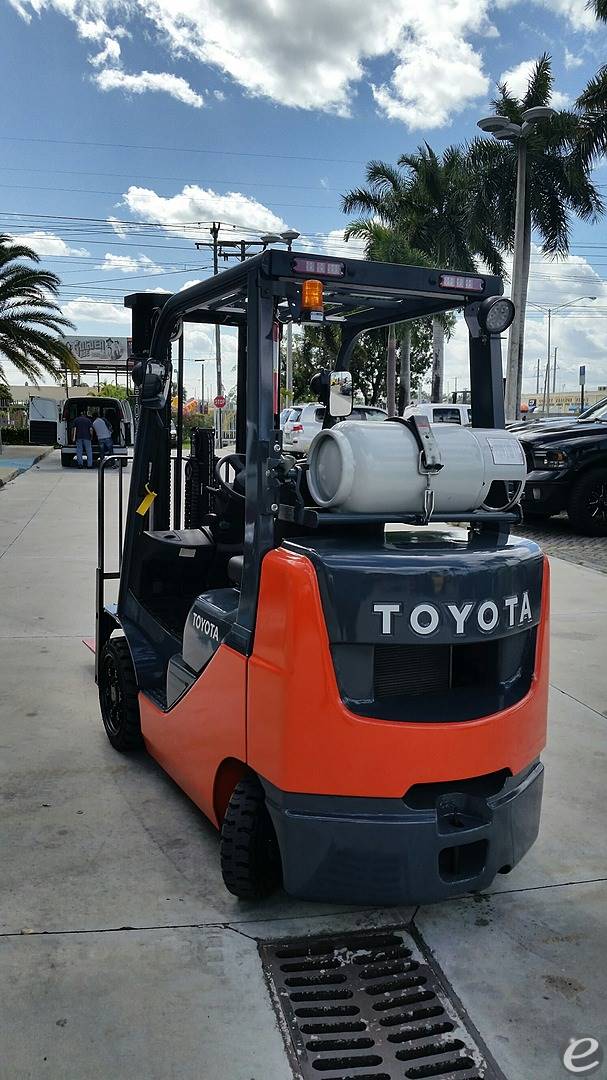

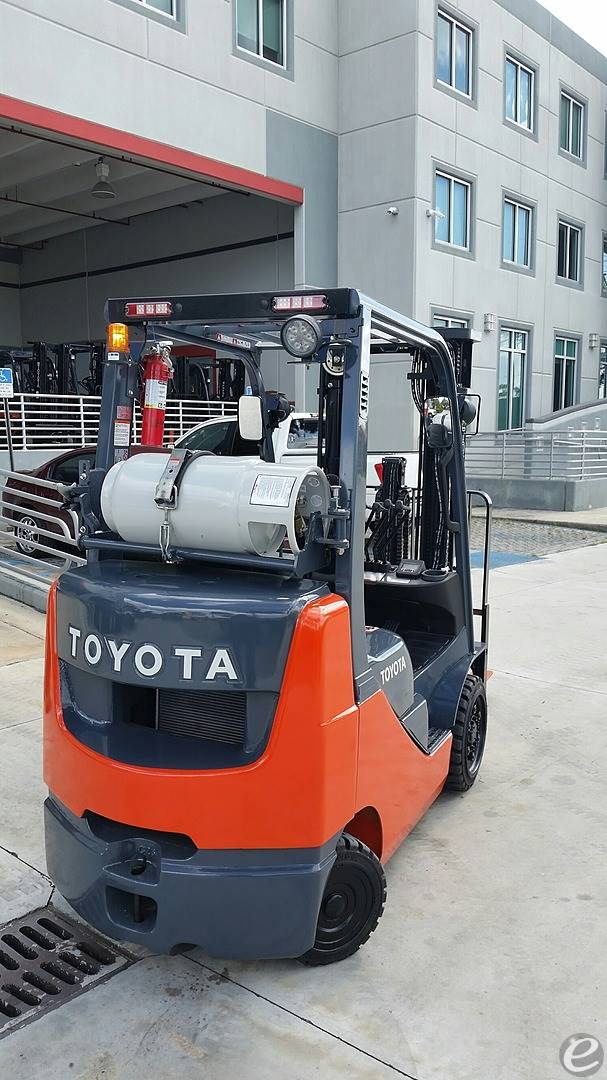

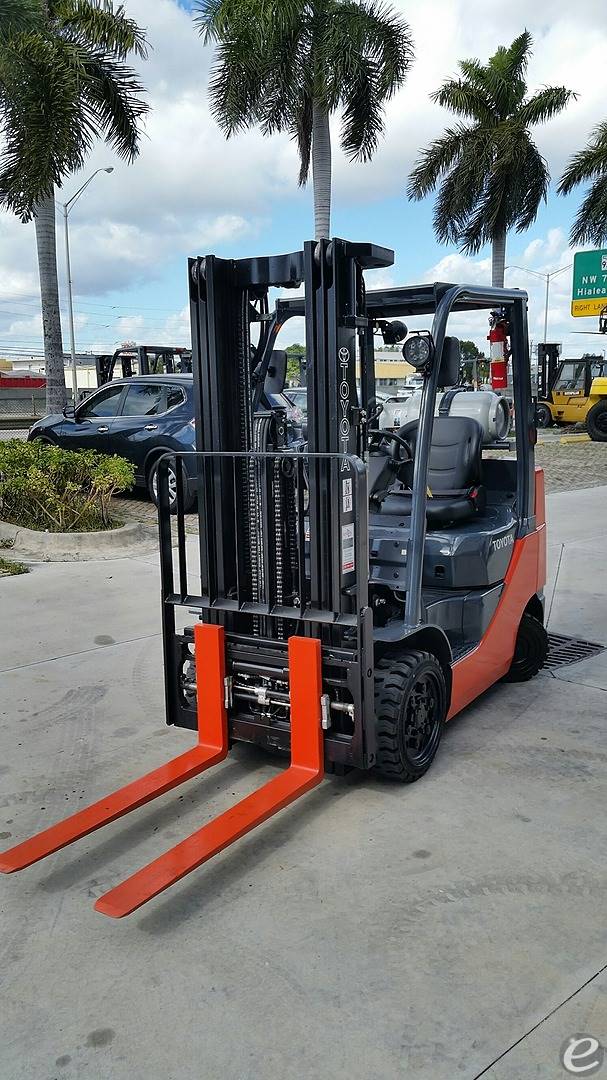

2014 Toyota 8FGCU25

lp gas cushion tire 4 wheel sit down (indoor warehouse)

$23,900 USD
CONTACT INFO
Name:
Arturo
Phone:

ADDRESS
Forklifts Parts & Equipment
7695 NW 63 St.
MiamiFlorida 33166
ATTRIBUTES
YEAR:
2014
Manufacturer:
MODEL #:
CAPACITY:
5000
FUEL:
LP Gas
MAST TYPE:
Three Stage
MAST HEIGHT:
83 / 189 in
SIDE SHIFTER:
Yes
CONDITION:
Used
HOUR METER:
6240
LOCATION:
Florida [33166]
DESCRIPTION:
TWO UNITS AVAILABLE,LOW HOURS 6240.
POST DATE:
3/10/2025
Equipment Description
  • Manufacturer: Toyota
  • Model Number: 8FGCU25
  • General Specifications:
    • Power Type: LPG (Liquid Petroleum Gas)
    • Operator Position: Sit-down
    • Tire Type: Cushion
    • Number of Wheels: 4
  • Dimensions:
    • Length to Face of Forks: 8.17 ft
    • Overall Width (Without Load): 3.5 ft
    • Height to Top of Overhead Guard: 7 ft
    • Turning Radius: 80.5 in
    • Minimum Outside Turning Radius: 5.5 ft
    • Wheelbase: 5.08 ft
  • Performance:
    • Rated Load Capacity: 5,000 lbs
    • Load Center: 24 in
    • Travel Speed (Loaded): 11.2 mph
    • Travel Speed (Unloaded): 11.5 mph
    • Lifting Speed (Loaded): 118 ft/min
    • Lifting Speed (Unloaded): 131 ft/min
    • Lowering Speed (Loaded): 98 ft/min
    • Lowering Speed (Unloaded): 98 ft/min
  • Engine Specifications:
    • Engine Model: Toyota 4Y
    • Engine Type: 4-cylinder, water-cooled
    • Displacement: 142 in³
    • Rated Power: 51 hp @ 2,400 RPM
    • Torque: 118.6 lbf·ft @ 1,600 RPM
  • Weights:
    • Service Weight: 8,750 lbs
    • Axle Loading Front: 12,284 lbs (With Load)
    • Axle Loading Rear: 1,466 lbs (With Load)
  • Wheel Specifications:
    • Front Tires: 21x7x15
    • Rear Tires: 16x5x10 ½
    • Tread (Front/Rear): 36/36 in
  • Transmission:
    • Transmission Type: Powershift
    • Number of Speeds (Forward/Reverse): 1/1
  • Brakes:
    • Service Brake: Hydraulic
    • Parking Brake: Mechanical, hand operated
